Ignition Coil: Inspection

Check that there is no deformation, cracks or other damages.

Make sure that the connection between the ignition coil body and the protector is not insecure.

NOTE: For the ignition coil that has an ignition coil body side protrusion and a protector side protrusion, make sure that they are within the installation range shown in the figure.

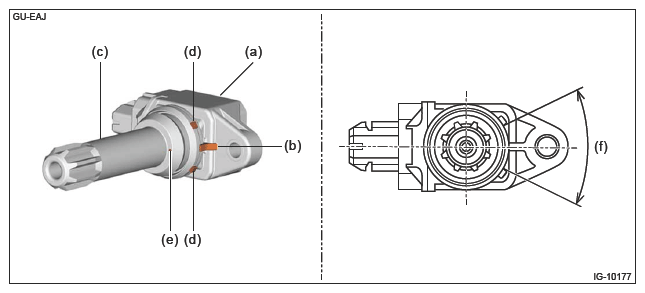

Courtesy of SUBARU OF AMERICA, INC.

(a)	Ignition coil body
(b)	Ignition coil body side protrusion
(c)	Protector
(d)	Protector side protrusion
(e)	Bleeding hole
(f)	Installation range

For inspection procedure of ignition control system, refer to "Diagnostics with Phenomenon".
2.0 L model :

Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0)>DIAGNOSTICS WITH PHENOMENON>IGNITION CONTROL SYSTEM .

2.5 L model :

Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.5)>DIAGNOSTICS WITH PHENOMENON>IGNITION CONTROL SYSTEM .
