Select Lever: Removal

NOTE:

Components: Ref. to CONTROL SYSTEMS>GENERAL DESCRIPTION>COMPONENT>SELECT LEVER .
The "P" range switch and manual mode switch are integrated with the select lever.
The select lever cannot be disassembled.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

Remove the mat tray center. (Model without wireless charger)

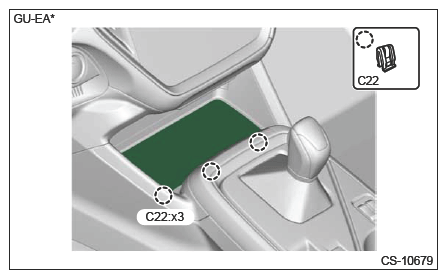

Release the clips using a flat tip screwdriver or similar tool wrapped with protection tape.

Remove the mat tray center.

Courtesy of SUBARU OF AMERICA, INC.

Remove the wireless charger assembly. (Model with wireless charger) Ref. to ENTERTAINMENT & MONITORING>WIRELESS CHARGER>REMOVAL .

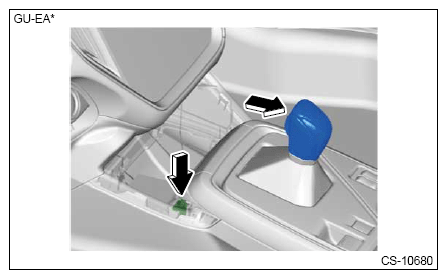

Shift the select lever to "N range".

Shift the select lever to "N range".

Courtesy of SUBARU OF AMERICA, INC.

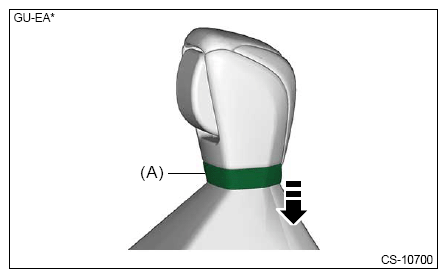

Lower the section (A) of the boot. (Model with boot shifter)

Courtesy of SUBARU OF AMERICA, INC.

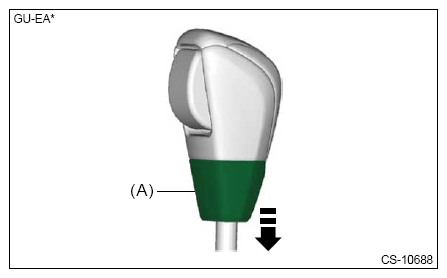

Lower the cover grip AT (A) vertically toward the lever. (Model with gate shifter)

Courtesy of SUBARU OF AMERICA, INC.

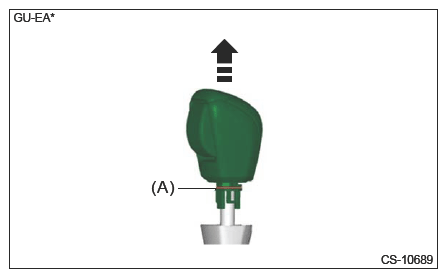

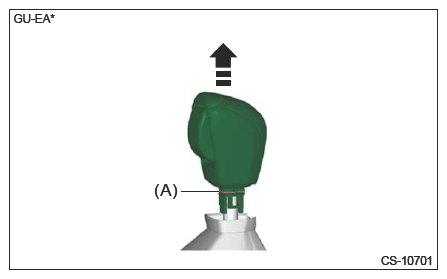

Remove the grip.

Remove the grip.

Model with boot shifter

Courtesy of SUBARU OF AMERICA, INC.

Model with gate shifter

Courtesy of SUBARU OF AMERICA, INC.

Remove the console box. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
Remove the cover center side. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
Disconnect the connector.

Courtesy of SUBARU OF AMERICA, INC.

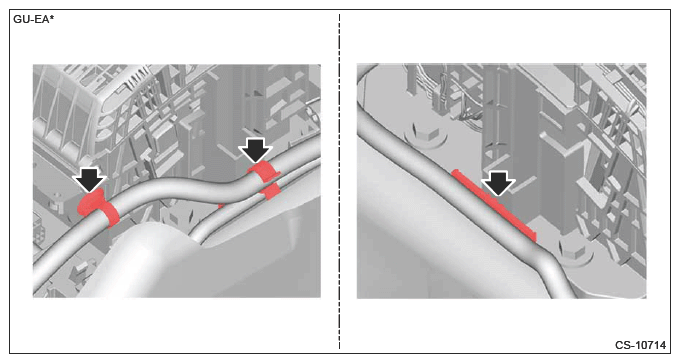

Remove the clips securing the harness.

Courtesy of SUBARU OF AMERICA, INC.

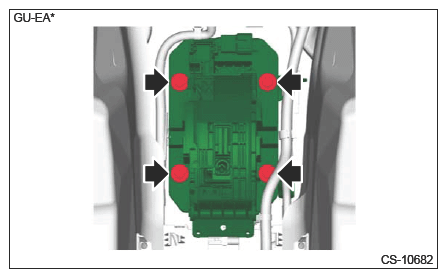

Remove the select lever.

Remove the select lever.

Courtesy of SUBARU OF AMERICA, INC.
