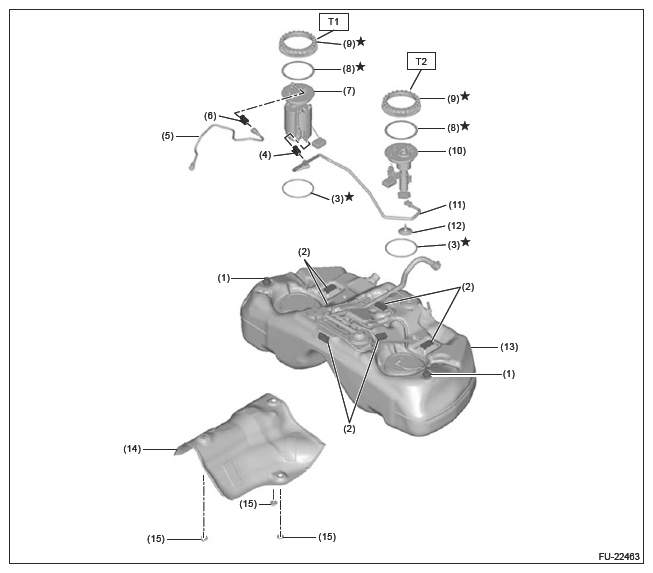

Fuel Tank 1
| (1) | Cushion ASSY |
| (2) | Cushion* |
| (3) | Gasket |
| (4) | Retainer |
| (5) | Fuel delivery tube |
| (6) | Retainer |
| (7) | Fuel pump ASSY |
| (8) | Ring nut plate |
| (9) | Ring nut |
| (10) | Fuel sub level sensor |
| (11) | Fuel sub delivery tube |
| (12) | Filter |
| (13) | Fuel tank |
| (14) | Fuel tank cover |
| (15) | Cover clamp |
*: When removing from the fuel tank, replace it with a new part.
Tightening torque: N.m (kgf-m, ft-lb)
T1: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>INSTALLATION .
T2: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL SUB LEVEL SENSOR>INSTALLATION .
