Backup Battery

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the data communication module. Ref. to ENTERTAINMENT & MONITORING>DATA COMMUNICATION MODULE>REMOVAL>DATA COMMUNICATION MODULE .
Remove the backup battery.

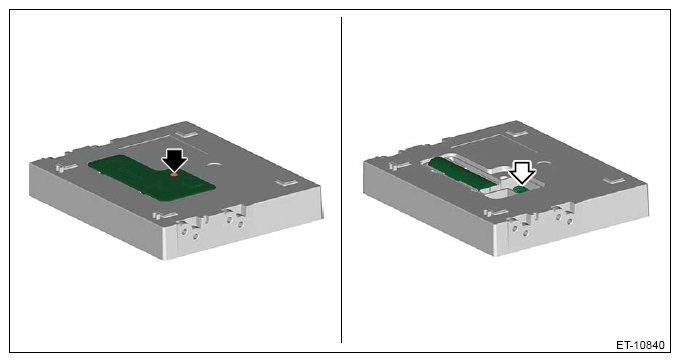

1. Using TORX® T10, remove the cap screw, and then remove the battery cover.
2. Disconnect the connector and remove the backup battery.
Courtesy of SUBARU OF AMERICA, INC.
