Check The Intake Air Temperature Sensor Unit

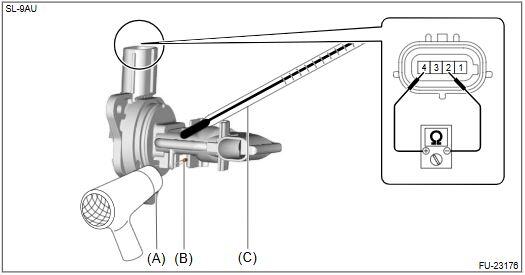

Raise the temperature gradually, measure the resistance between the air flow and intake air temperature sensor terminals when the temperature is 20°C (68°F) and 60°C (140°F).
| (A) | Drier |
| (B) | Intake air temperature sensor unit |
| (C) | Thermometer |
| Temperature | Terminal No. | Standard |
|---|---|---|
| 20°C (68°F) | 2 and 4 | 2.21 - 2.69 kΩ |
| 60°C (140°F) | 0.493 - 0.667 kΩ |
