Wheel Alignment: Inspection: Caster

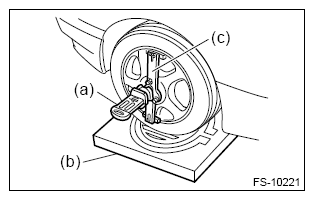

Place the front tires on the turning radius gauge.
NOTE: Make sure that the ground contact surfaces of the front tires and rear tires are at the same level.

Set the alignment gauge adapter into the center of wheel, and then set the alignment gauge.

Courtesy of SUBARU OF AMERICA, INC.

Measure the caster angle in accordance with the operation service information for alignment gauge.
