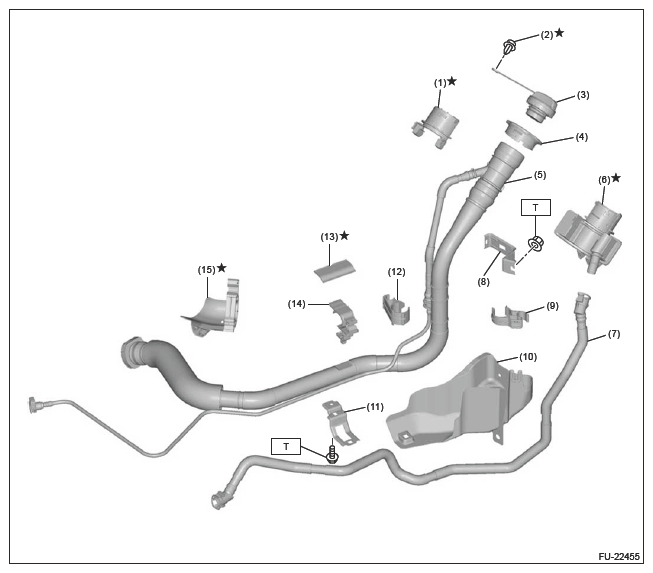

Fuel Filler Pipe
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Sub drain filter |
| (2) |
Clip |
| (3) |
Fuel filler cap |
| (4) |
Fuel filler pipe protector |
| (5) |
Filler tube |
| (6) |
Drain filter |
| (7) |
Drain tube |
| (8) |
Bracket A |
| (9) |
Clamp |
| (10) |
Protector A |
| (11) |
Bracket |
| (12) |
Clamp |
| (13) |
Cushion |
| (14) |
Clamp |
| (15) |
Clamp |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
