Steering Column: Inspection

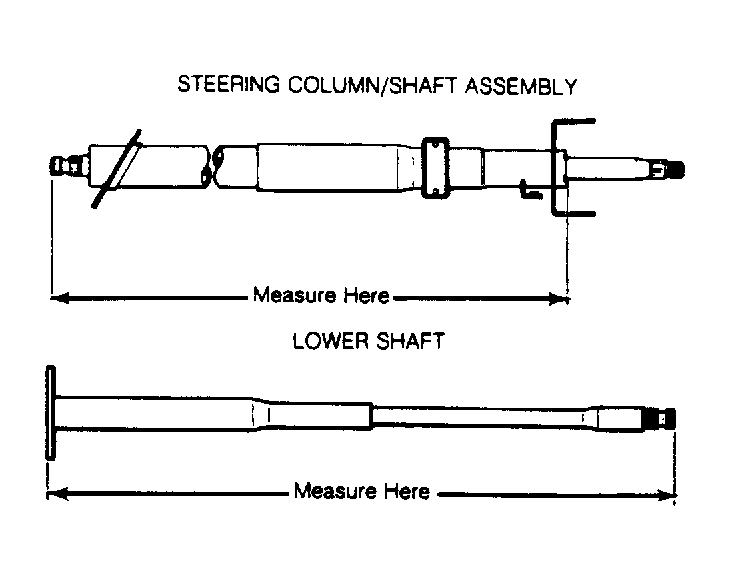

Measure steering column/shaft assembly. Shaft should measure no less than 25.02" (635.5 mm). See Figure. Measure lower shaft. Lower shaft should be between 18.98-19.05" (482-484 mm). See Figure. If either measurement is not within specification, replace as necessary.
