Throttle Position Switch (Wide Open & Idle): Notes

1. Warm engine to normal operating temperature. Turn off ignition. Using ohmmeter, connect negative probe to check terminal and connect positive probe to ground. See Fig 1 .
2. Turn ignition on and note ohmmeter indicator. See the MICROSWITCH TEST  table in this article. If indicator does not deflect at all, reverse ohmmeter connection and retest. If test results are not as specified, check each microswitch and circuits.

MICROSWITCH TEST

Throttle Valve Position	Indicator Deflection
Idle Position	Swing
Half Open	Stay After Deflection
Wide Open	Swing

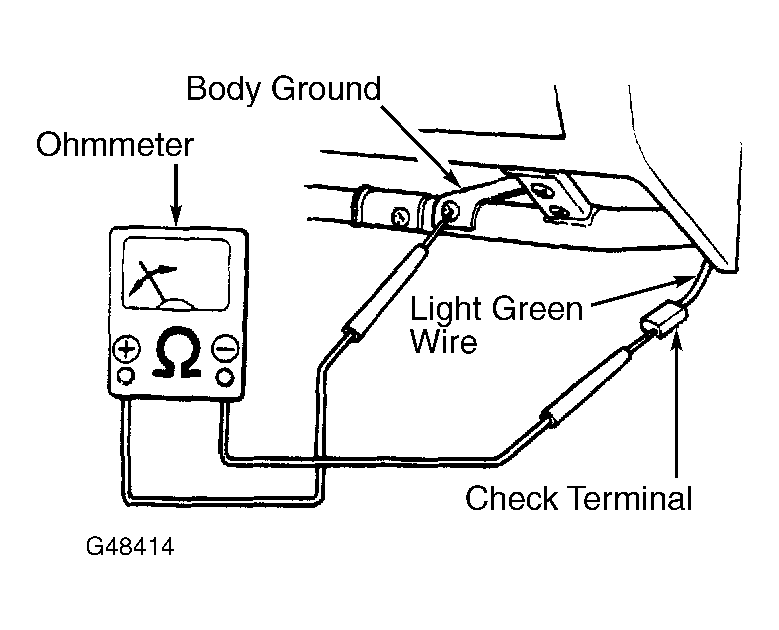

Fig 1: Microswitch Check Terminal Location

Courtesy of SUZUKI OF AMERICA CORP.
