Wide Open Throttle Switch Inspection

Attach ohmmeter to Green connector and Yellow connector. See Fig 1 . Ohmmeter should indicate zero. Rotate throttle to the wide open position. Ohmmeter should indicate infinity. If not, replace wide open throttle switch.

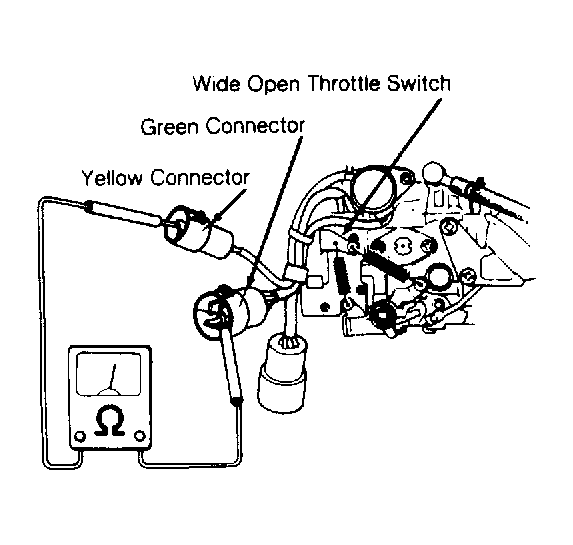

Fig 1: Samurai Wide Open Throttle Switch Test Connection

Courtesy of SUZUKI OF AMERICA CORP.
