Remove, Overhaul & Install: Remove/Install/Overhaul: Carburetor: Installation

1. To install carburetor, reverse removal procedure. Tighten 4 mounting nuts in crisscross pattern to 14-20 ft. lbs. (18-28 N.m). Refill cooling system. Readjust accelerator cable. See Fig 1 .
   NOTE: With carburetor installed on vehicle, fuel level in float chamber should be within round mark at center of sight glass.
2. After installing carburetor, ensure accelerator cable free play is correct. See Fig 1 .

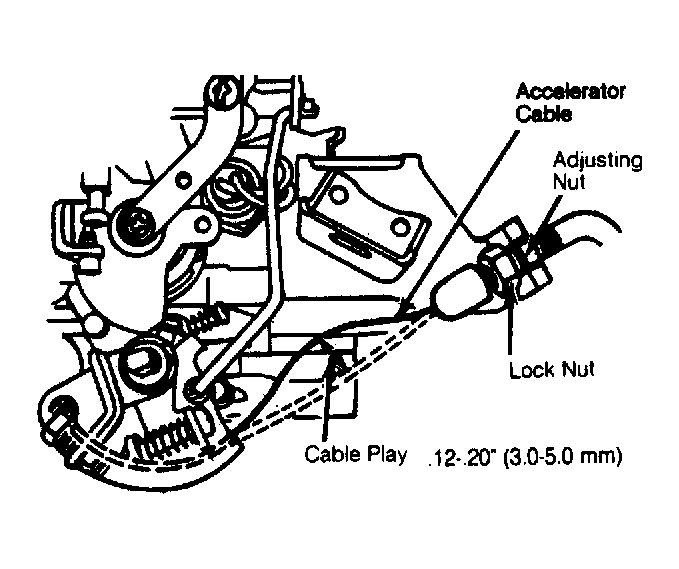

Fig 1: Adjusting Suzuki (Hitachi DFB 306) Accelerator Cable

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: For all other adjustments, see ADJUSTMENTS article.
