Remove, Overhaul & Install: Remove/Install/Overhaul: Distributor: Overhaul

Use Fig 1 as reference for distributor overhaul.

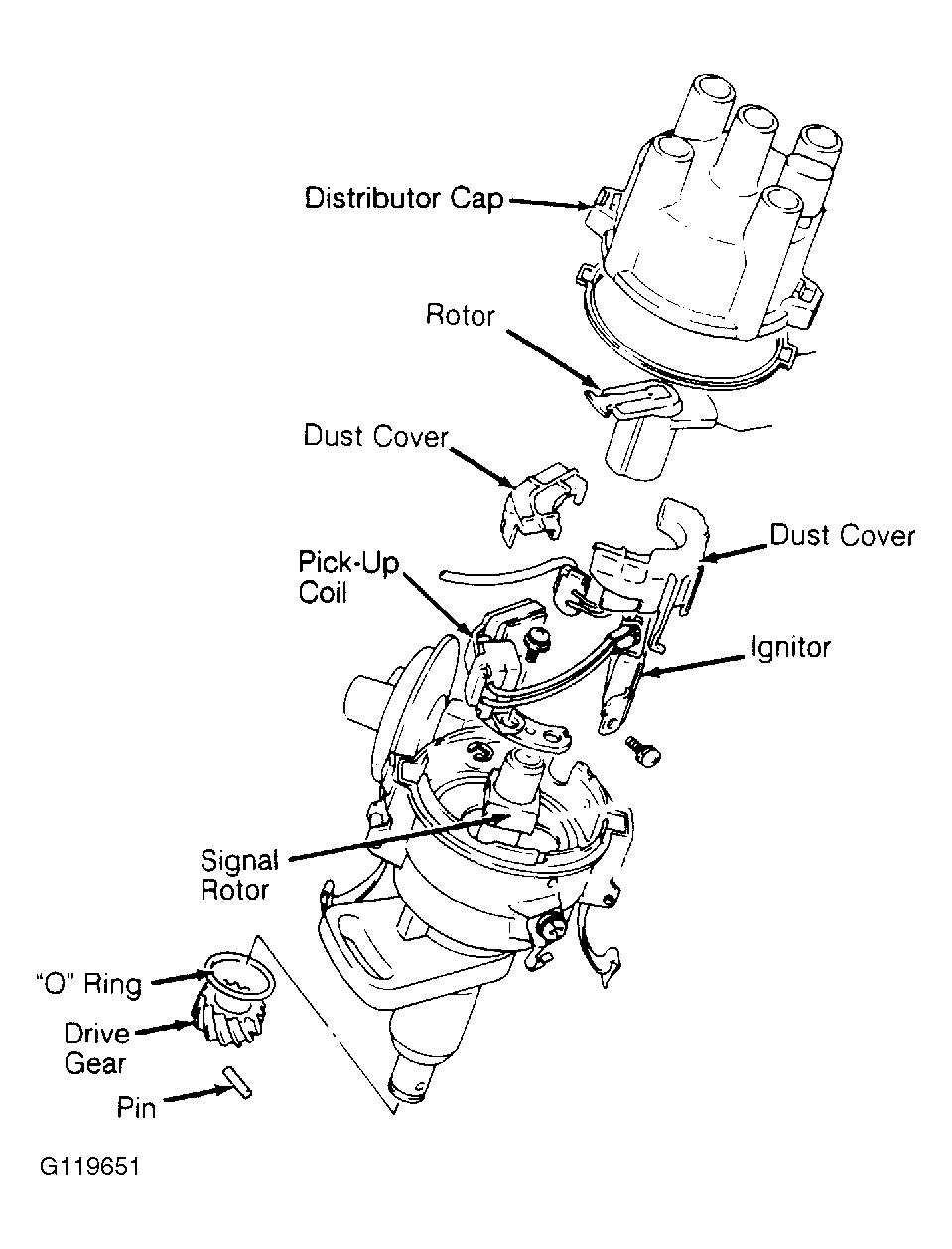

Fig 1: Exploded View of Distributor
G119651Courtesy of SUZUKI OF AMERICA CORP.
