Removal & Installation

  1. Ensure crankshaft is at 10 degrees BTDC on compression stroke. Remove distributor cap. Remove distributor hold-down bolt and lift out distributor.
  2. When installing distributor, use Fig 1 as a guide.

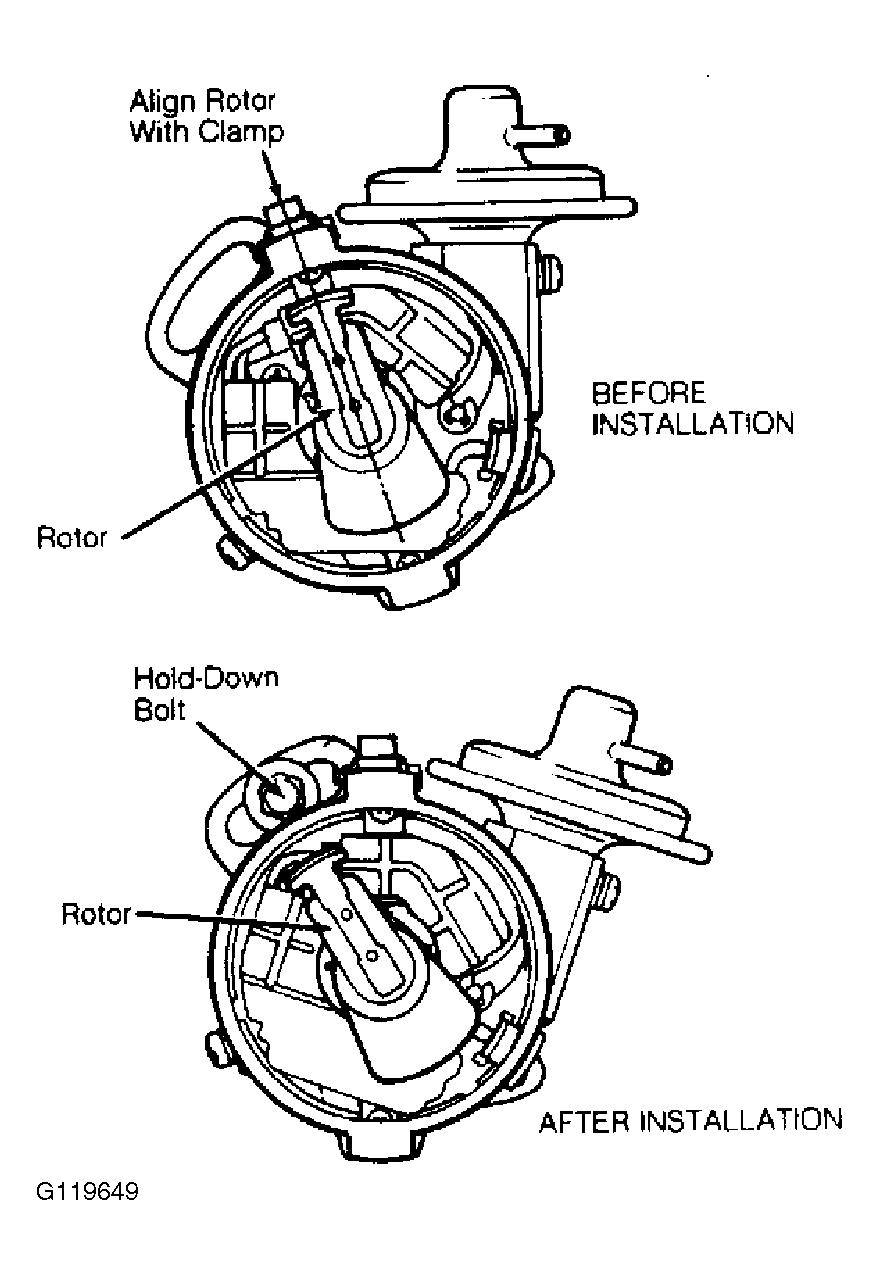

Fig 1: Installing Distributor
G119649Courtesy of SUZUKI OF AMERICA CORP.
