Torque Specifications

TORQUE SPECIFICATIONS (HITACHI DFB 306)

Adjustment

In. (mm)

Accelerator Cable Free Play

⁽¹⁾ .12-.20 (3.0-5.0)

Choke Plate Clearance @ Temperature °F (°C)

77 (25)

.004-.023 (.10-.60)

104 (40)

.05-.11 (1.3-2.8)

Float Level

.31 (7.9)

⁽¹⁾	Free play with engine at normal operating temperature.

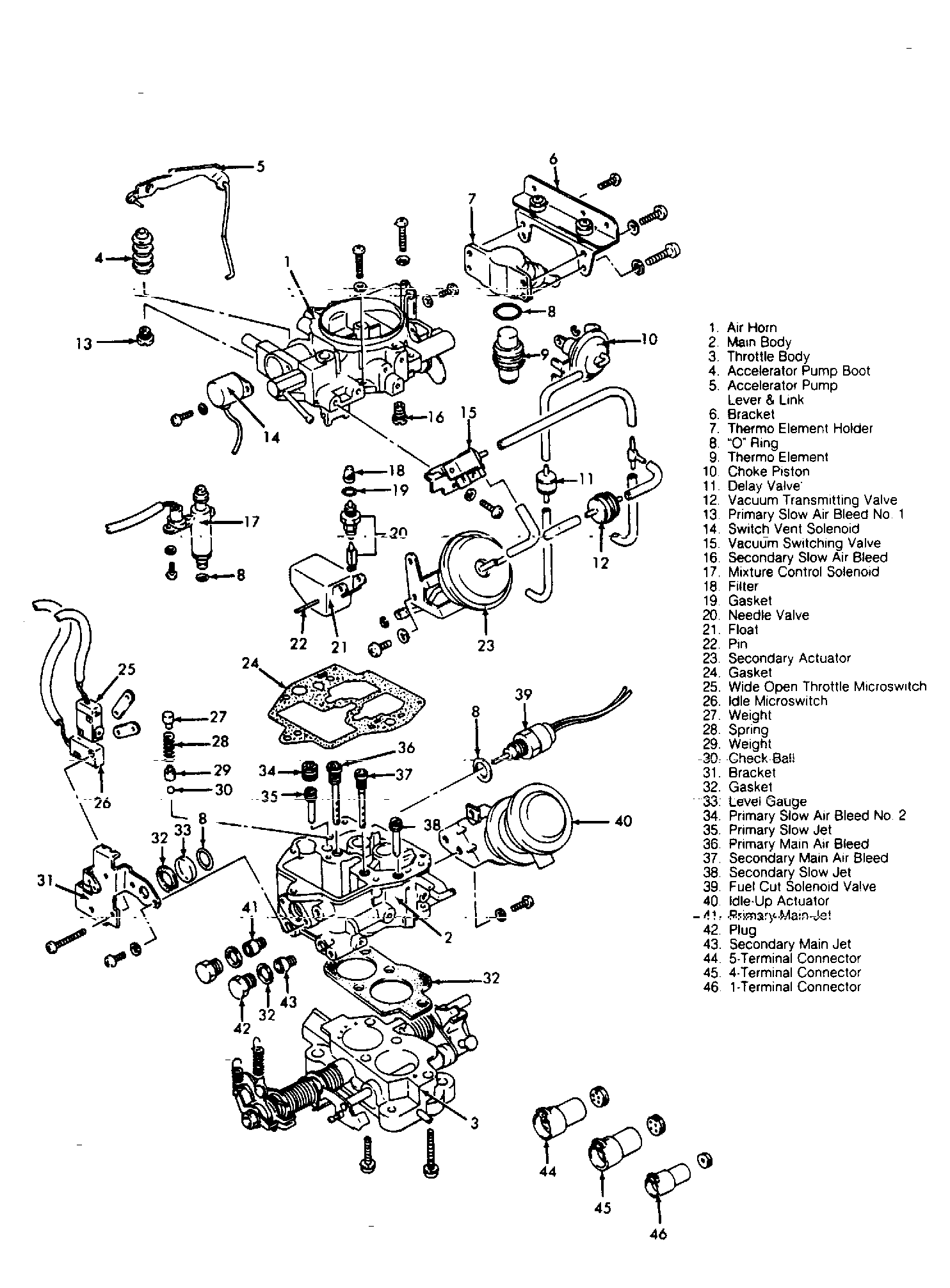

Fig 1: Exploded View of Suzuki Samurai (Hitachi DFB 306) Carburetor Assembly

Courtesy of SUZUKI OF AMERICA CORP.
