Fuel Pressure Release

  1. Place transmission in Neutral or Park and block drive wheels. Remove main fuse box cover and engine coolant reservoir from bracket.

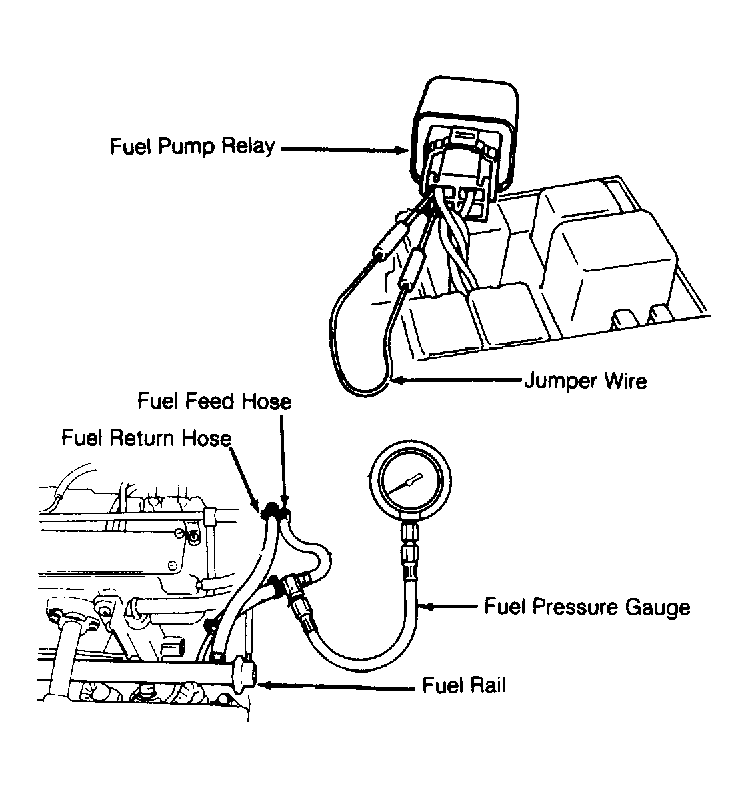

  2. Disengage wire harness connector from fuel pump relay. See Figure . Remove fuel tank filler cap. Start engine and idle until engine dies. Crank engine to ensure fuel is dissipated from system.
