Chart A2 - Check Engine Light Inoperative

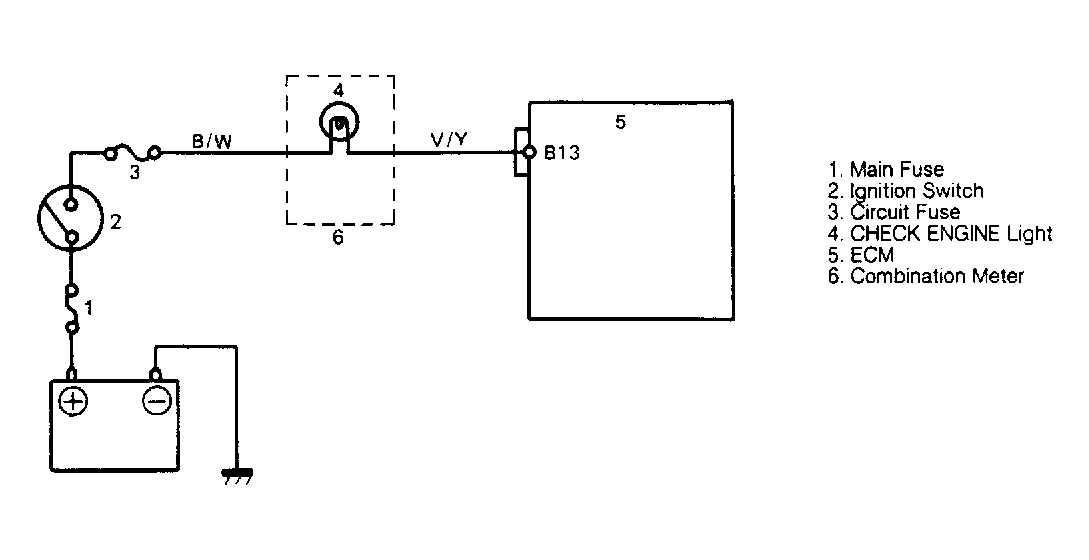

Fig 1: Code A2 Schematic, Check Engine Light Inoperative
G91A18432Courtesy of SUZUKI OF AMERICA CORP.

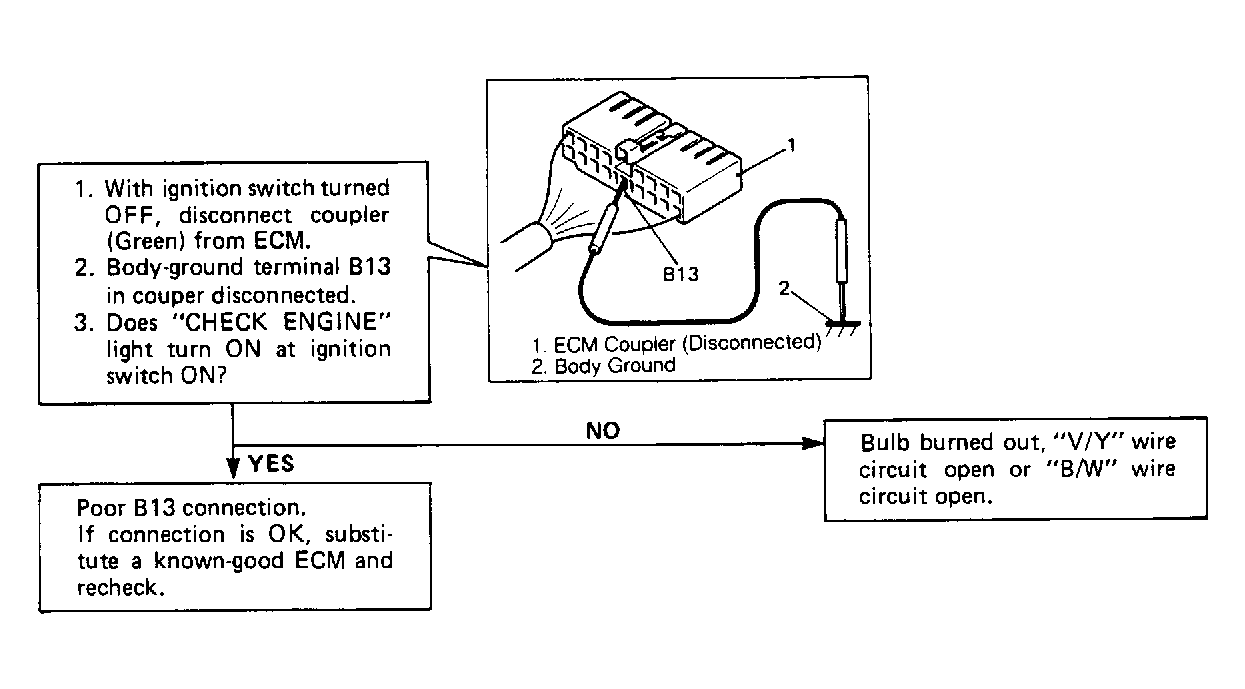

Fig 2: Code A2 Flow Chart, Check Engine Light Inoperative
G91B18433Courtesy of SUZUKI OF AMERICA CORP.
