Initial Diagnostic Procedure

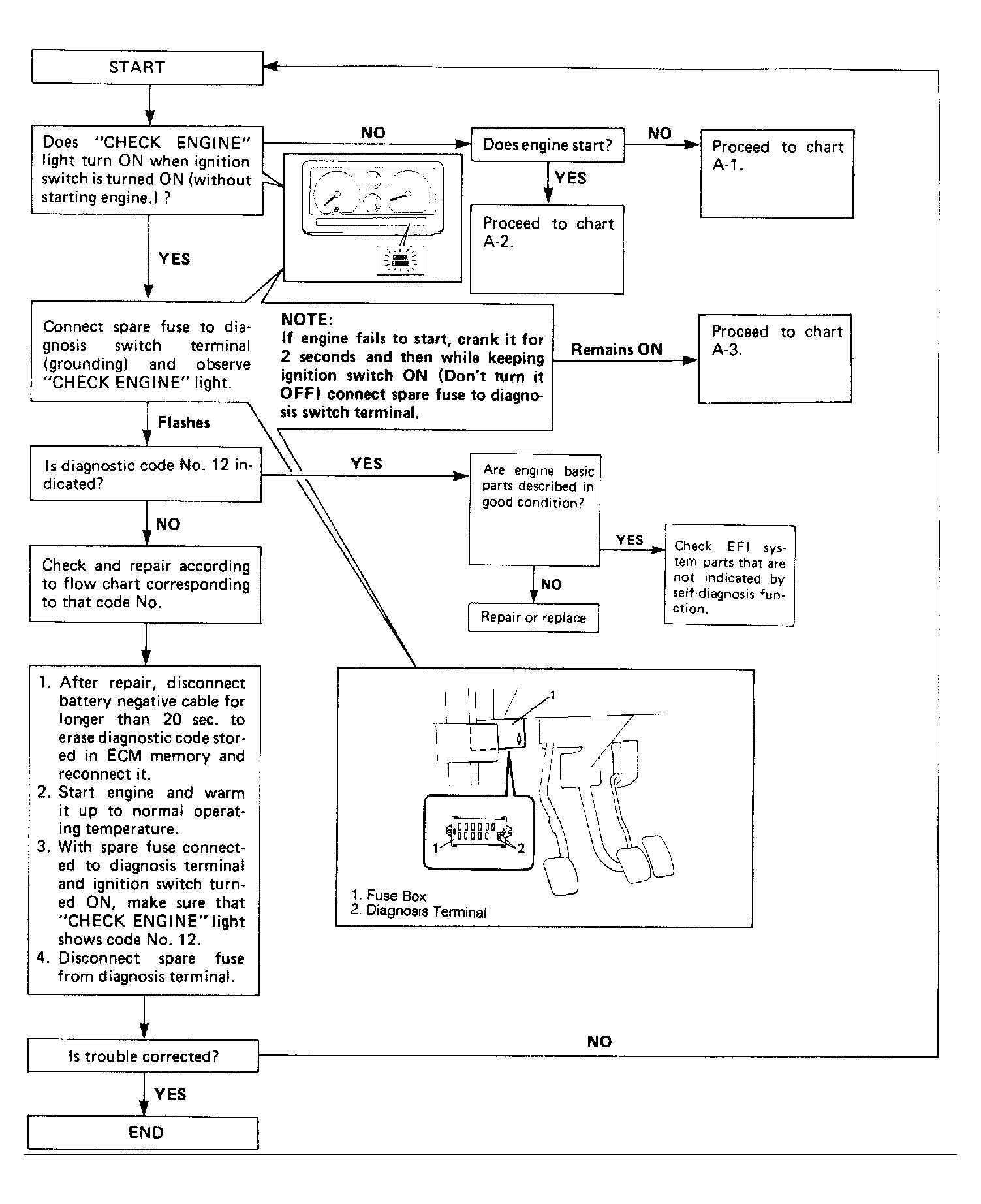

Fig 1: Initial Diagnostic Procedure Flow Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
