Code 25 - Air Temp Sensor (ATS) Circuit Indication High

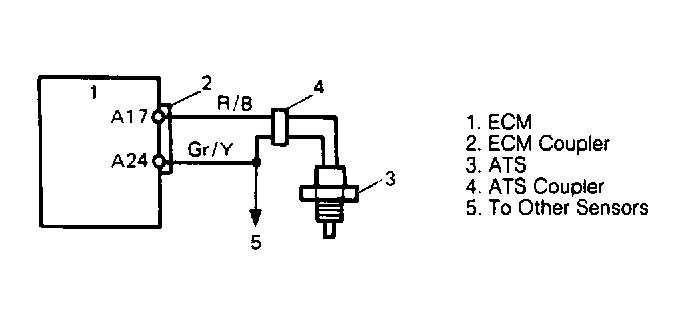

Fig 1: Code 25 Schematic, ATS Sensor Circuit

Courtesy of SUZUKI OF AMERICA CORP.

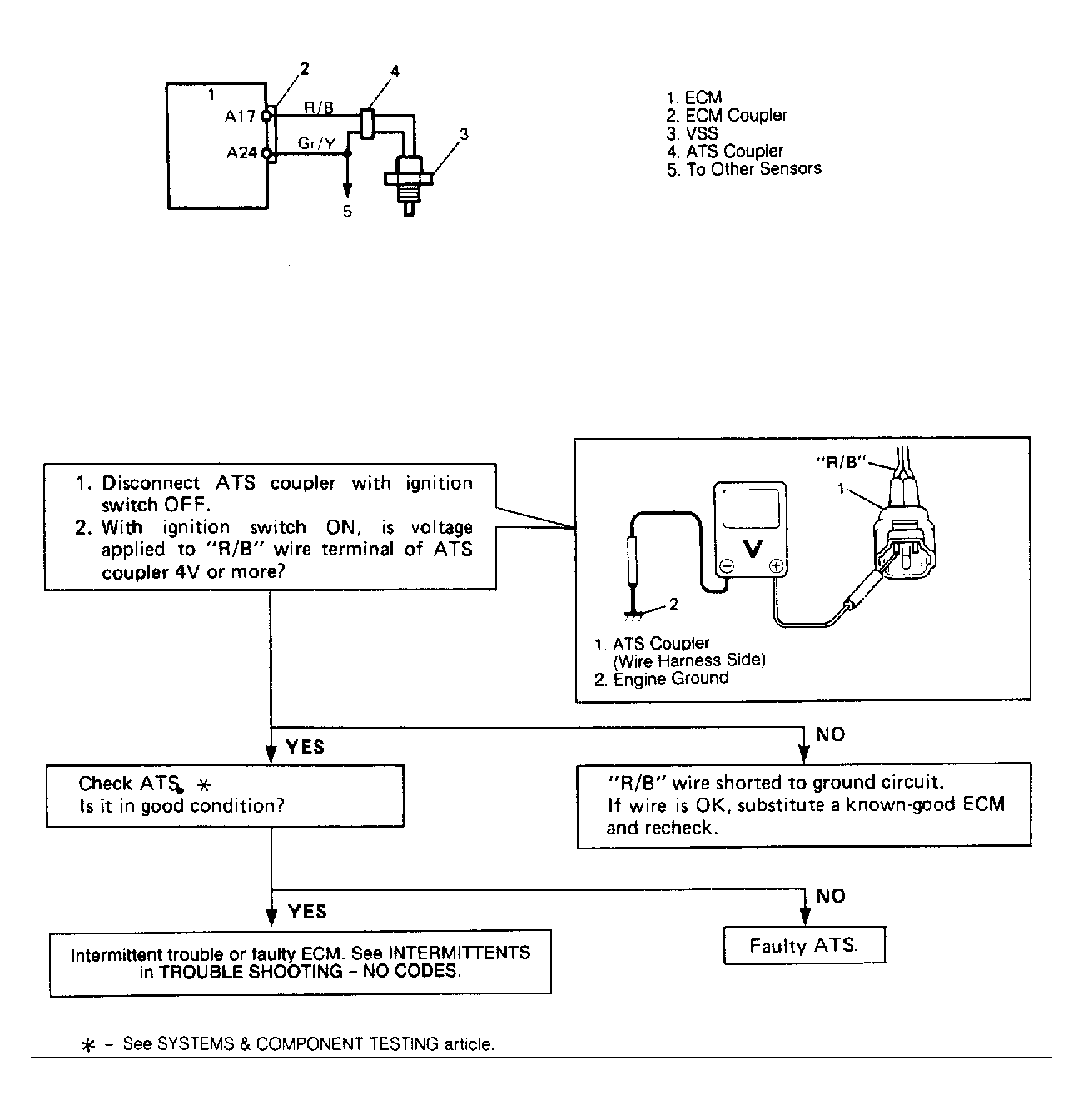

Fig 2: Code 25 Flow Chart, ATS Sensor Circuit

Courtesy of SUZUKI OF AMERICA CORP.
