Code 71 - Test Switch Circuit - CALIF. Only

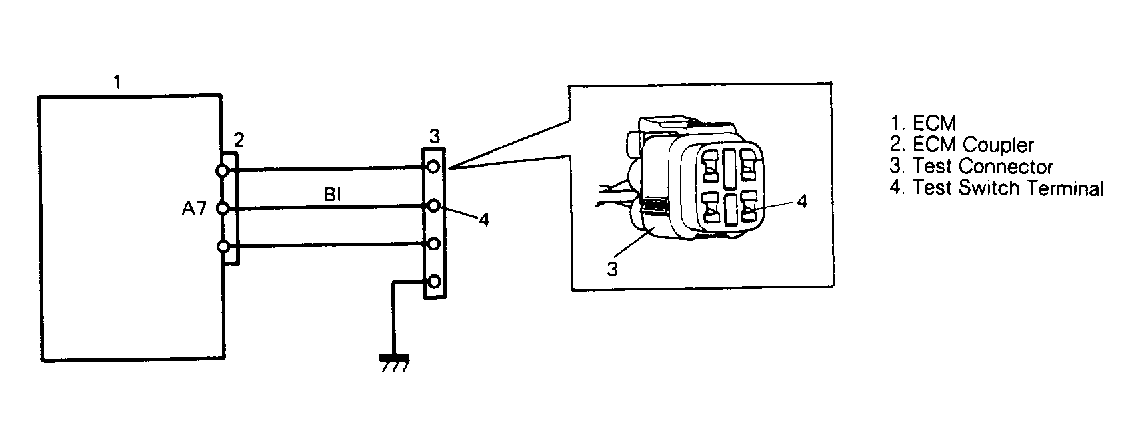

Fig 1: Code 71 Schematic & Flow Chart, Test Switch Circuit (Calif.)

Courtesy of SUZUKI OF AMERICA CORP.

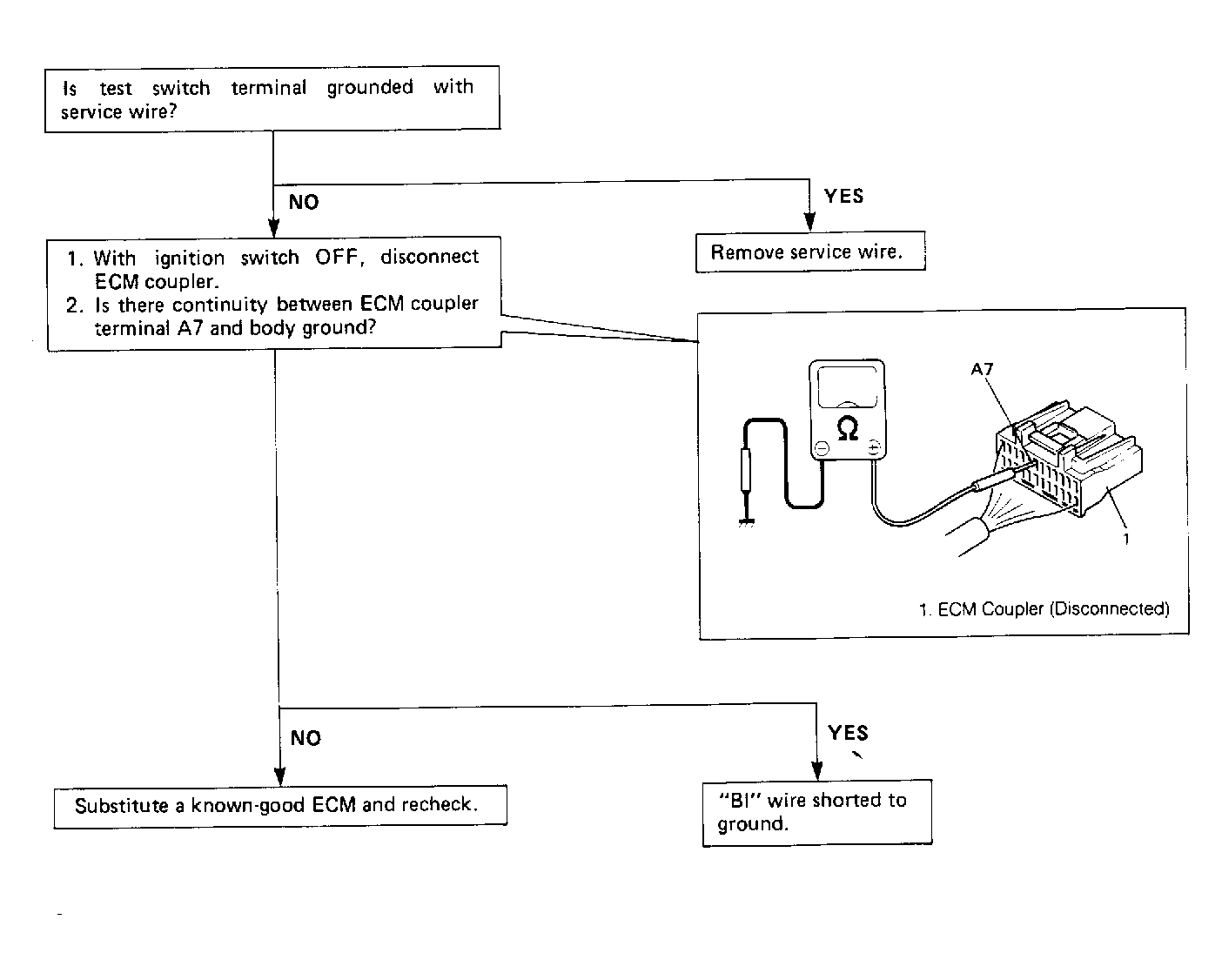

Fig 2: Code 71 Schematic & Flow Chart, Test Switch Circuit (Calif.)

Courtesy of SUZUKI OF AMERICA CORP.
