Control Units

CONTROL UNITS LOCATION

Component Location

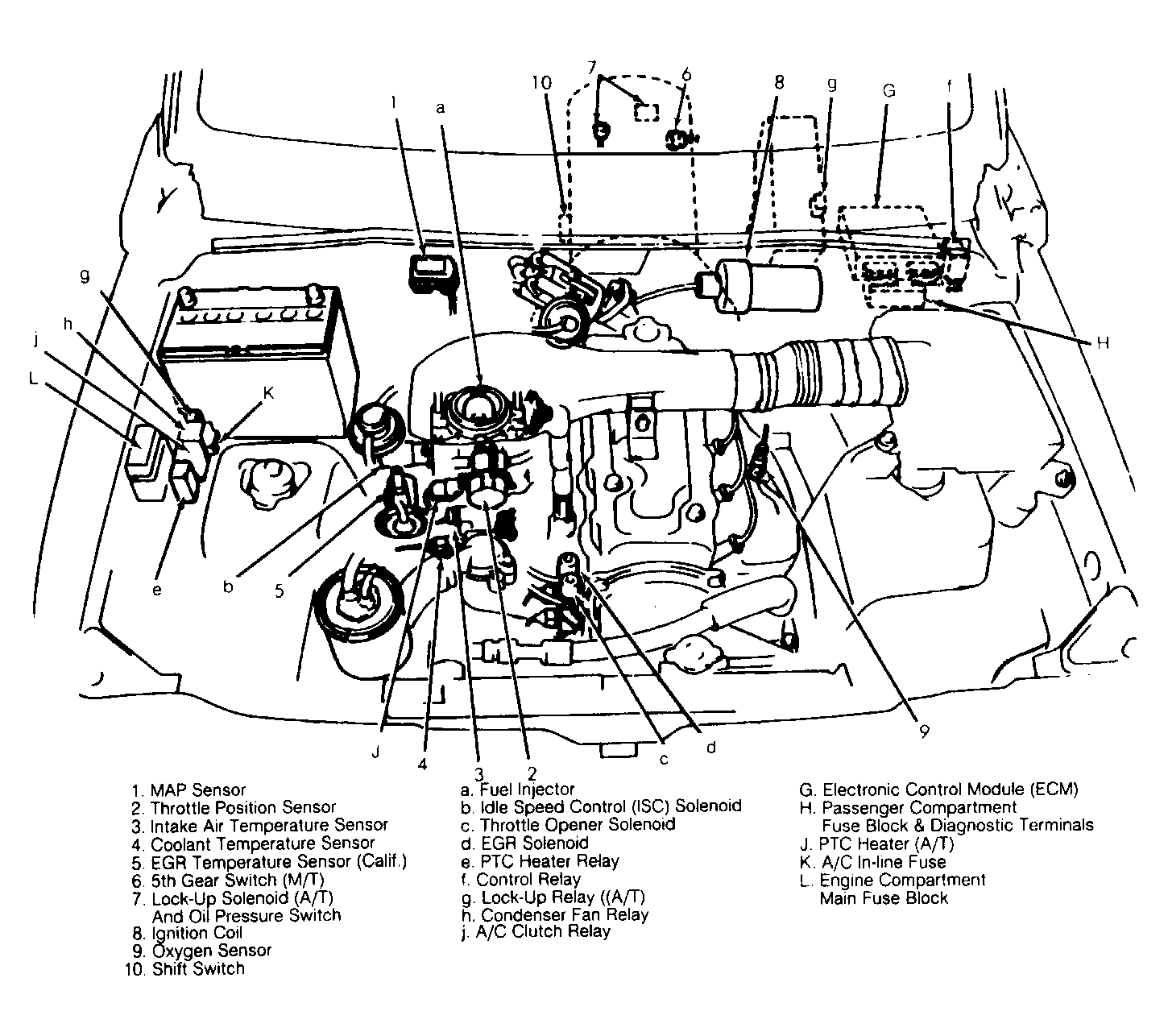

Electronic Control Module (ECM) At left side of dash, behind instrument cluster. See Figure .
