Pin Voltage Charts

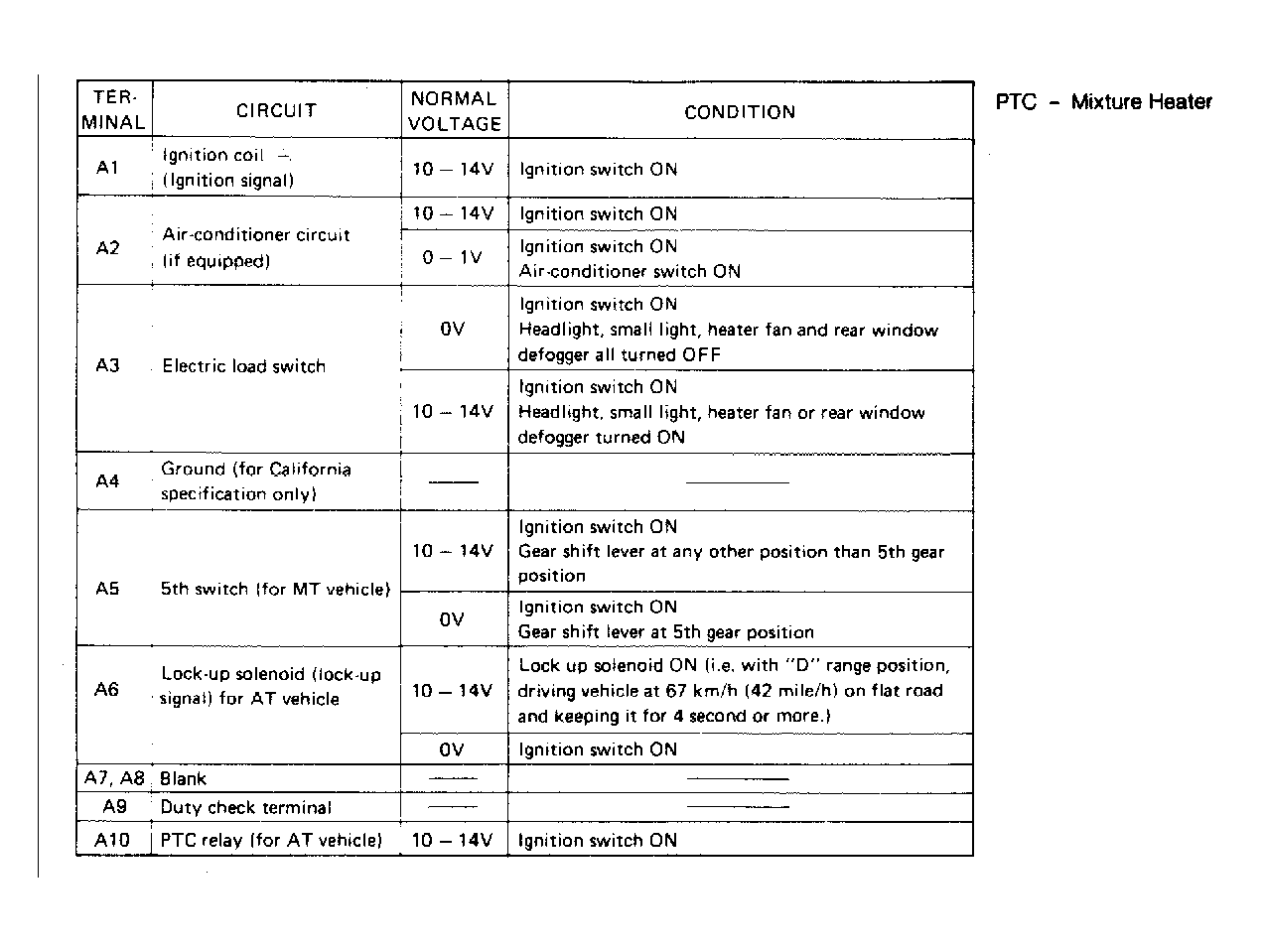

Fig 1: Terminals A1-A10 Pin Voltage Chart
G90D20225Courtesy of SUZUKI OF AMERICA CORP.

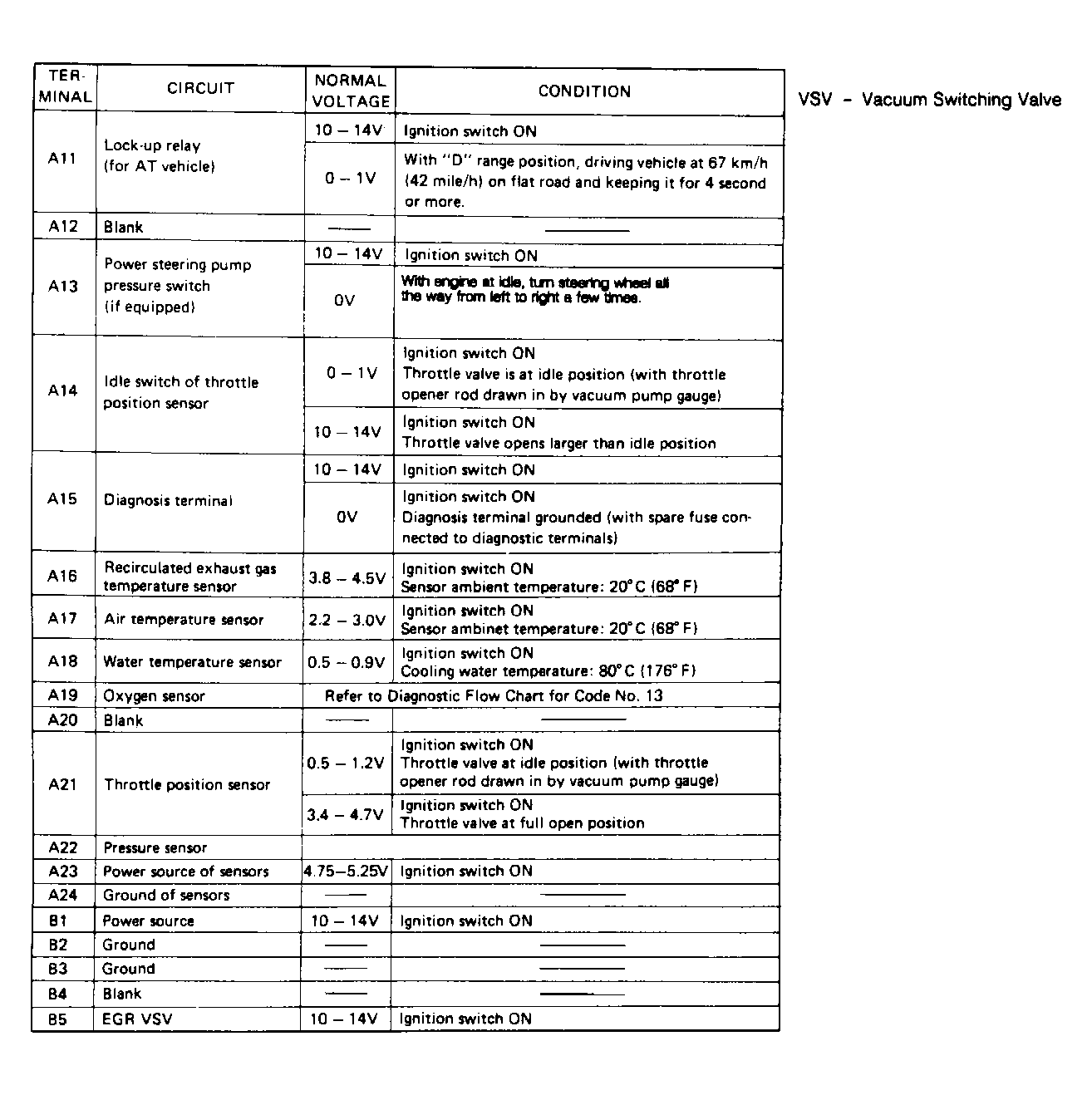

Fig 2: Terminals A11-B5 Pin Voltage Chart
G90E20226Courtesy of SUZUKI OF AMERICA CORP.

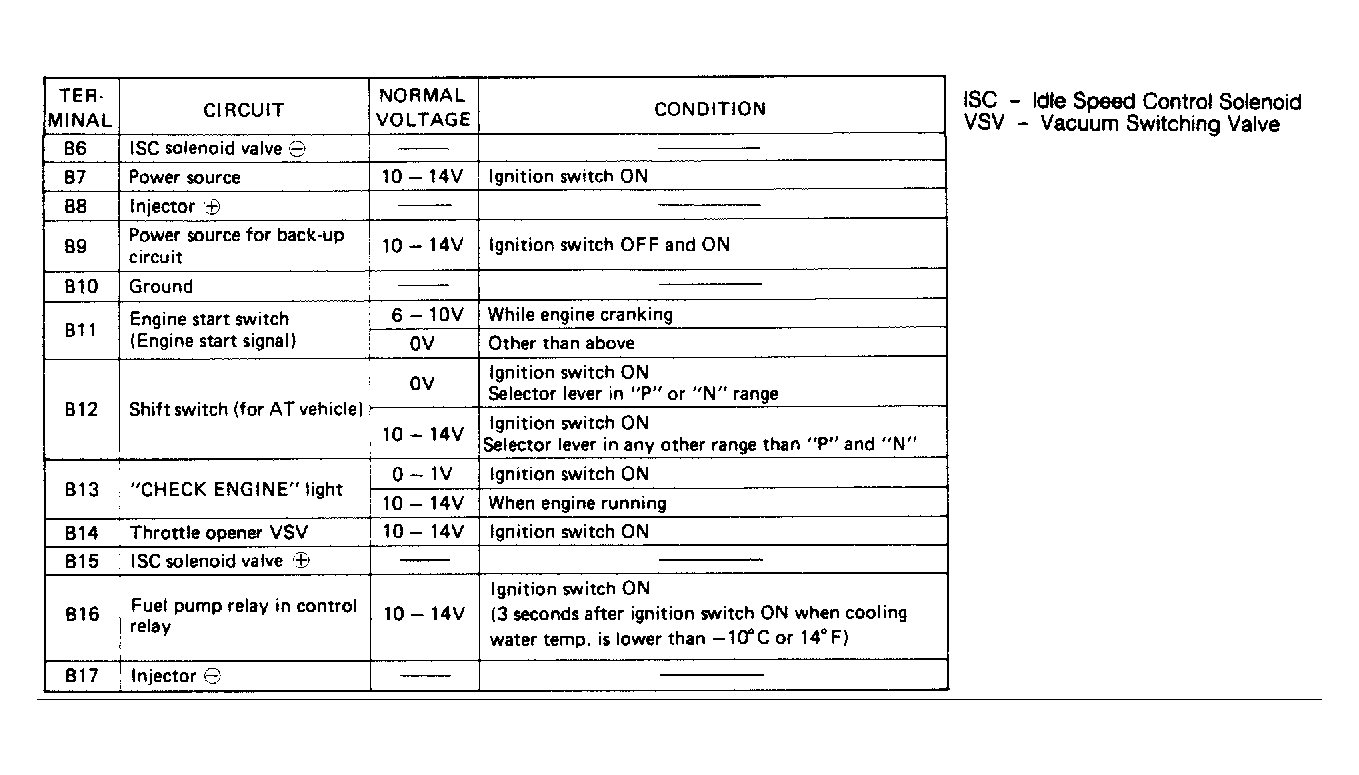

Fig 3: Terminals B6-B17 Pin Voltage Chart
G90F20227Courtesy of SUZUKI OF AMERICA CORP.
