Ignition Timing

IGNITION TIMING (Degrees BTDC @ RPM)

Application Specification
Automatic Transmission 8 @ 750-850
Manual Transmission 8 @ 750-850

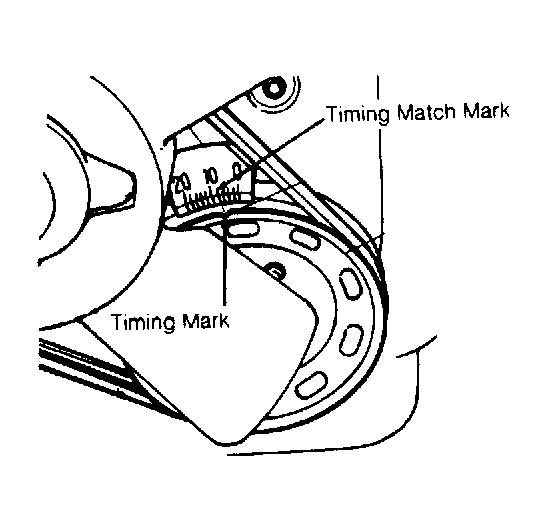

Fig 1: Typical Ignition Timing Mark Location
G119562Courtesy of SUZUKI OF AMERICA CORP.
