Spark Plugs

SPARK PLUG TYPE

Application Nippondenso NGK
Sidekick W16EXR-U BPR5ES
SPARK PLUG SPECIFICATIONS

Application Gap In. (mm) Torque Ft. Lbs. (N.m)
Sidekick .027-.031 (.69-.79) 15-22 (20-30)

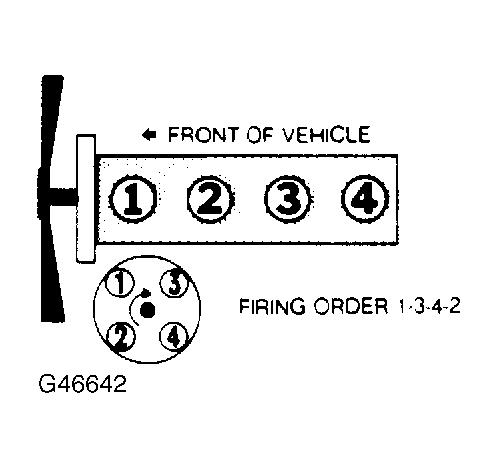

Fig 1: Firing Order & Distributor Rotation
G46642
