Fuel System Pressure Release
WARNING:
ALWAYS relieve fuel pressure before disconnecting any fuel injection-related component. DO NOT
allow fuel to contact engine or electrical components.
FUEL PUMP RELAY LOCATION
| Model | Location |
|---|---|
| Sidekick | Under Far Left Side Dash, Left of ECM |

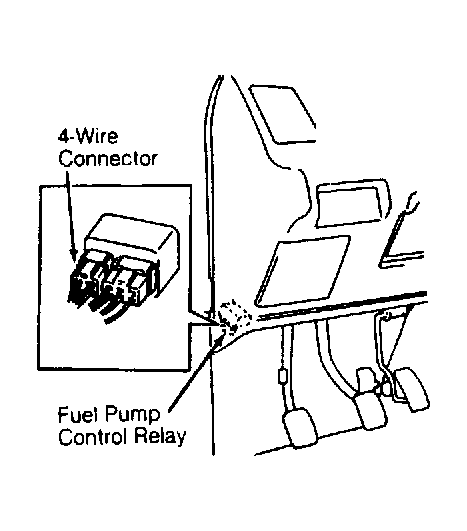

- Place transmission in Neutral or Park and set parking brake. Disconnect 4-wire connector from fuel pump control relay located under left side of dash, to left of ECM. See the FUEL PUMP RELAY LOCATION table. See Fig 1 .
- Loosen fuel tank filler cap to release tank vapor pressure. Start engine and let idle until engine dies. Crank engine 2-3 more times to ensure fuel pressure is dissipated from system. Turn ignition off and remove key. Fuel system may now be opened safely. When loosening fuel line, hose or fitting, cover it with shop towel to absorb leaking fuel. When repair is completed, reconnect relay.
