THROTTLE SWITCH CONTINUITY

Application			Specification
Swift (SOHC) With M/T
Between Terminals "A" & "B"
With .012" (.30 mm) Clearance At Stop Screw			Continuity
With .035" (.89 mm) Clearance At Stop Screw			No Continuity
With Throttle Wide Open			No Continuity
Between Terminals "B" & "C"
With .012" (.30 mm) Clearance At Stop Screw			No Continuity
With .035" (.89 mm) Clearance At Stop Screw			No Continuity
With Throttle Wide Open			Continuity
Between Terminals "A" & "C"
With .012" (.30 mm) Clearance At Stop Screw			No Continuity
With .035" (.89 mm) Clearance At Stop Screw			No Continuity
With Throttle Wide Open			No Continuity

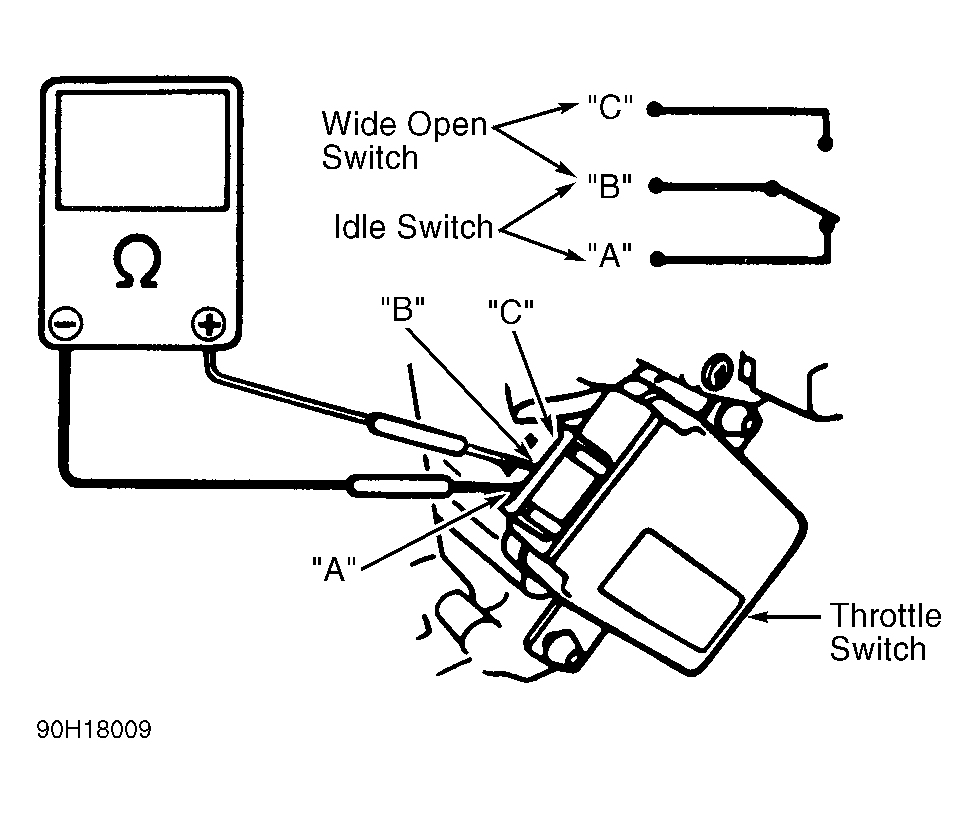

Fig 1: Throttle Switch Connector Terminal ID (Swift SOHC With M/T)

Courtesy of SUZUKI OF AMERICA CORP.
