Code 13 - Oxygen Sensor Circuit

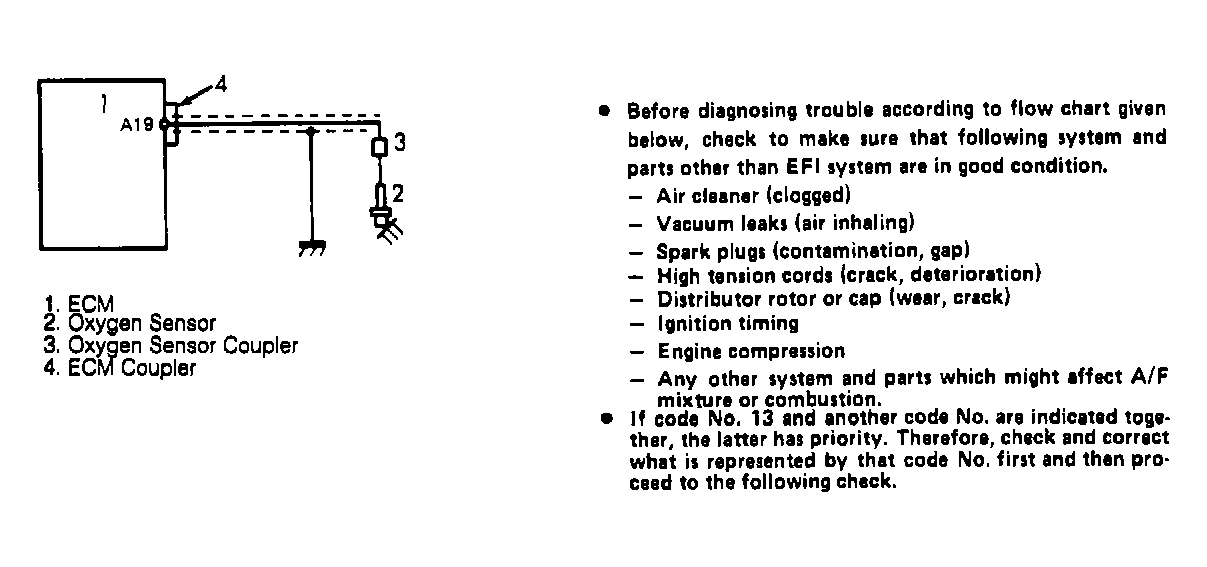

Fig 1: Code 13 Circuit Diagram
G119590Courtesy of SUZUKI OF AMERICA CORP.

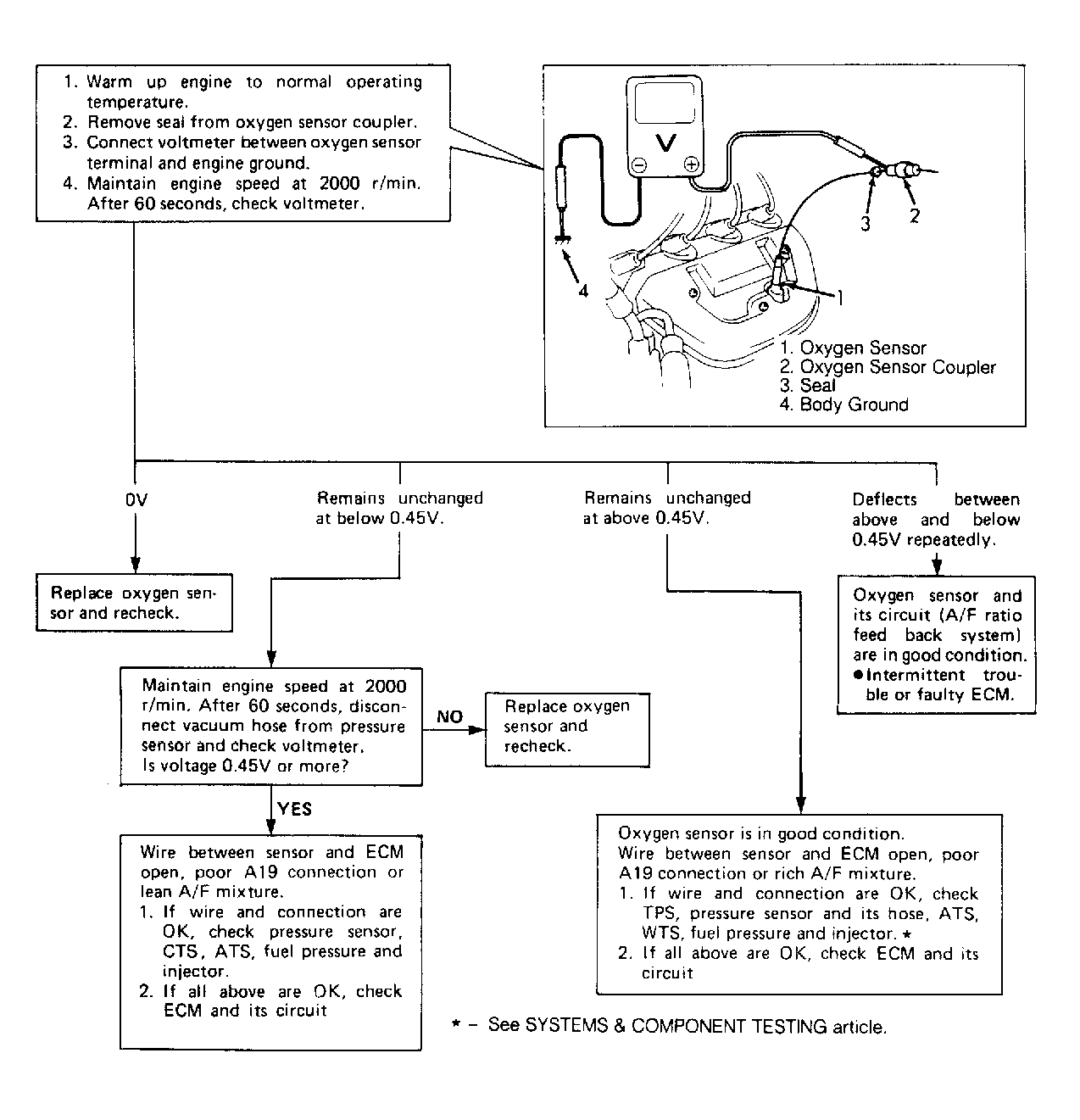

Fig 2: Code 13 Flow Chart
G119591Courtesy of SUZUKI OF AMERICA CORP.
