Code 14 - Coolant Temperature Sensor (Cts) Indication Low

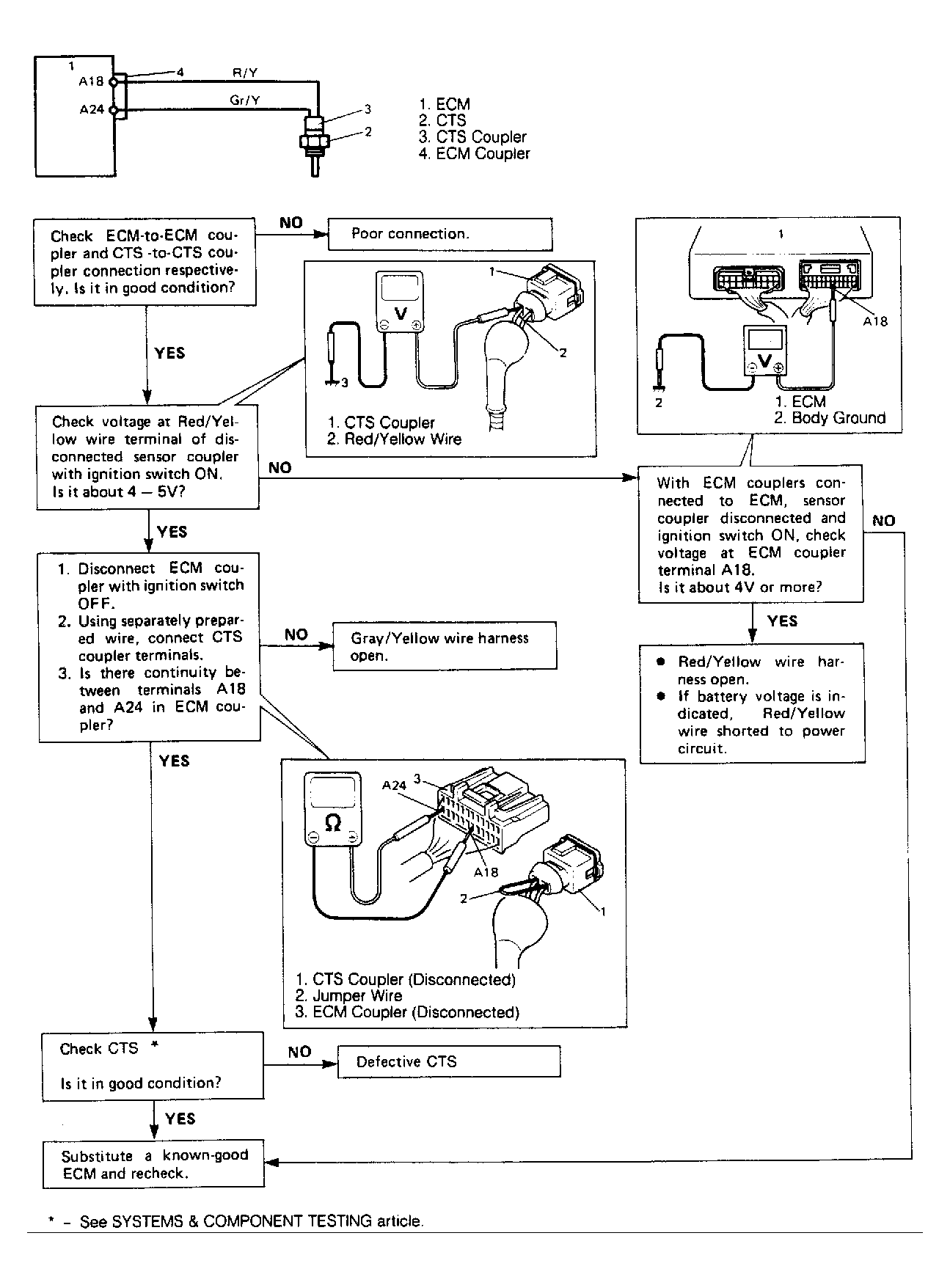

Fig 1: Code 14 Circuit Diagram & Flow Chart
G119592Courtesy of SUZUKI OF AMERICA CORP.
