Code 15 - Coolant Temperature Sensor (Cts) Indication High

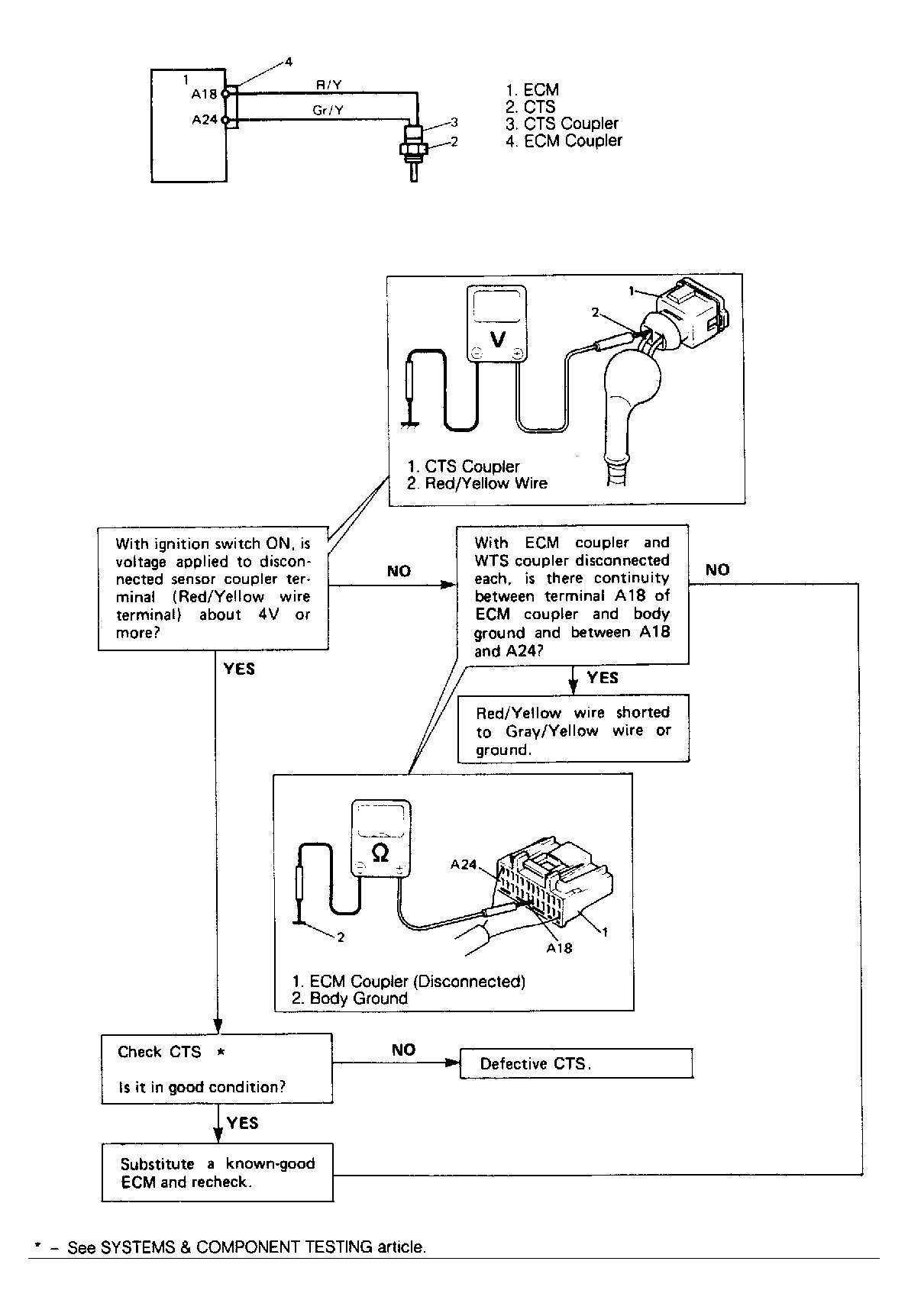

Fig 1: Code 15 Circuit Diagram & Flow Chart
G119593Courtesy of SUZUKI OF AMERICA CORP.
