Code 21 - Throttle Position Sensor Circuit Indication High

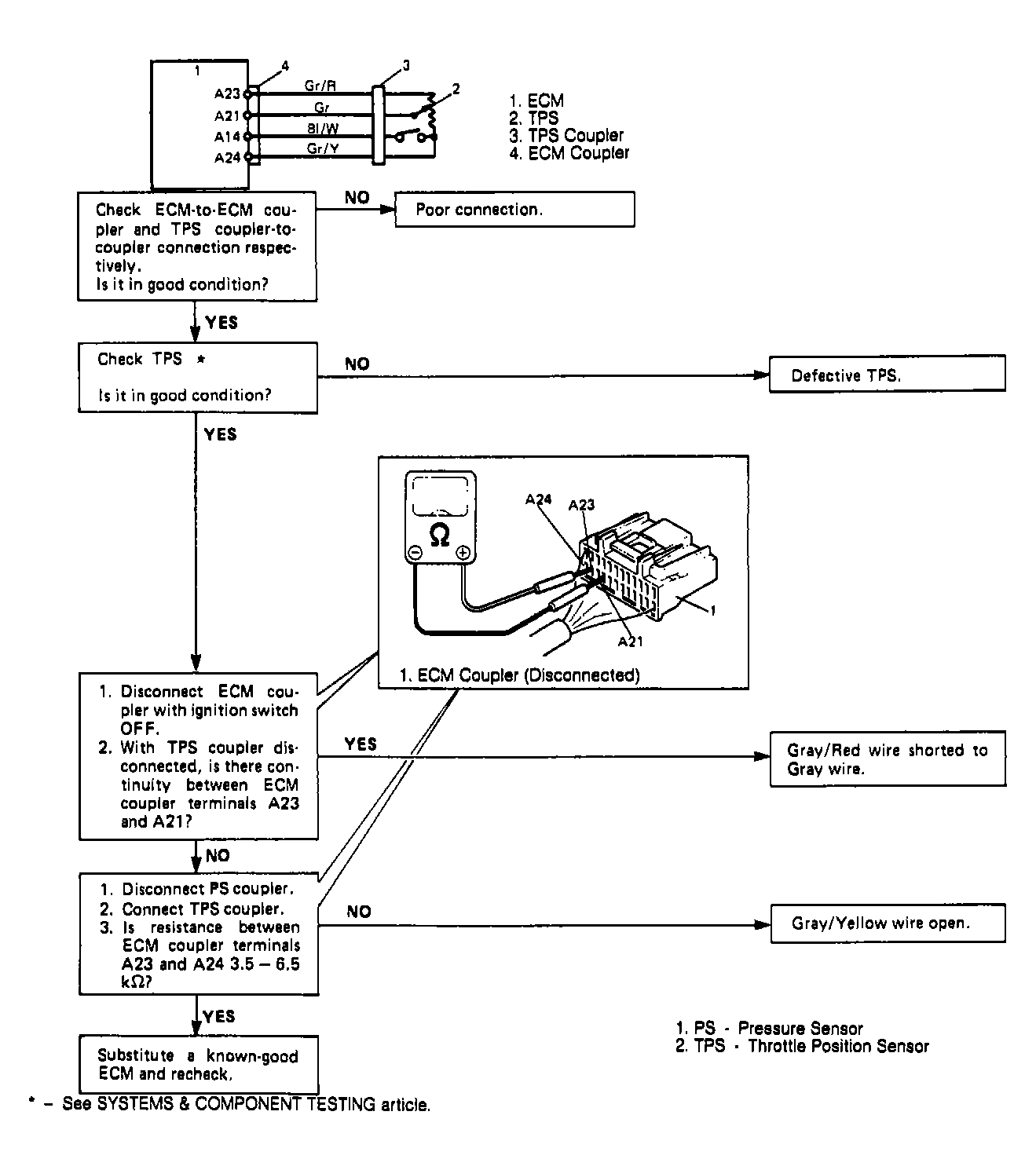

Fig 1: Code 21 Circuit Diagram & Flow Chart
G119594Courtesy of SUZUKI OF AMERICA CORP.
