Code 42 - Lock-Up Signal Continuous Input (A/T)

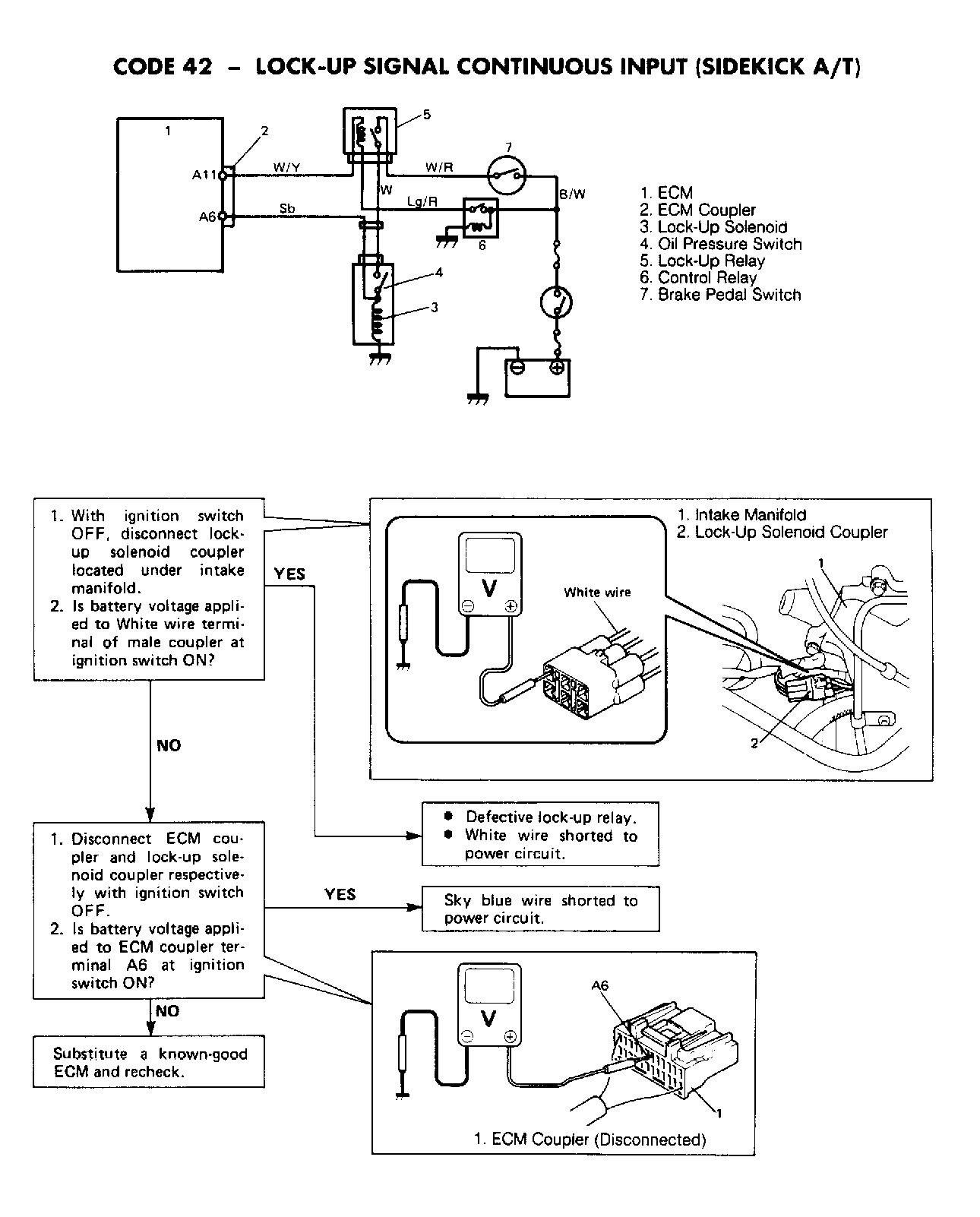

Fig 1: Code 42 Circuit Diagram & Flow Chart
G119602Courtesy of SUZUKI OF AMERICA CORP.
