Code 51 - EGR System Circuit Check - CALIF. Only

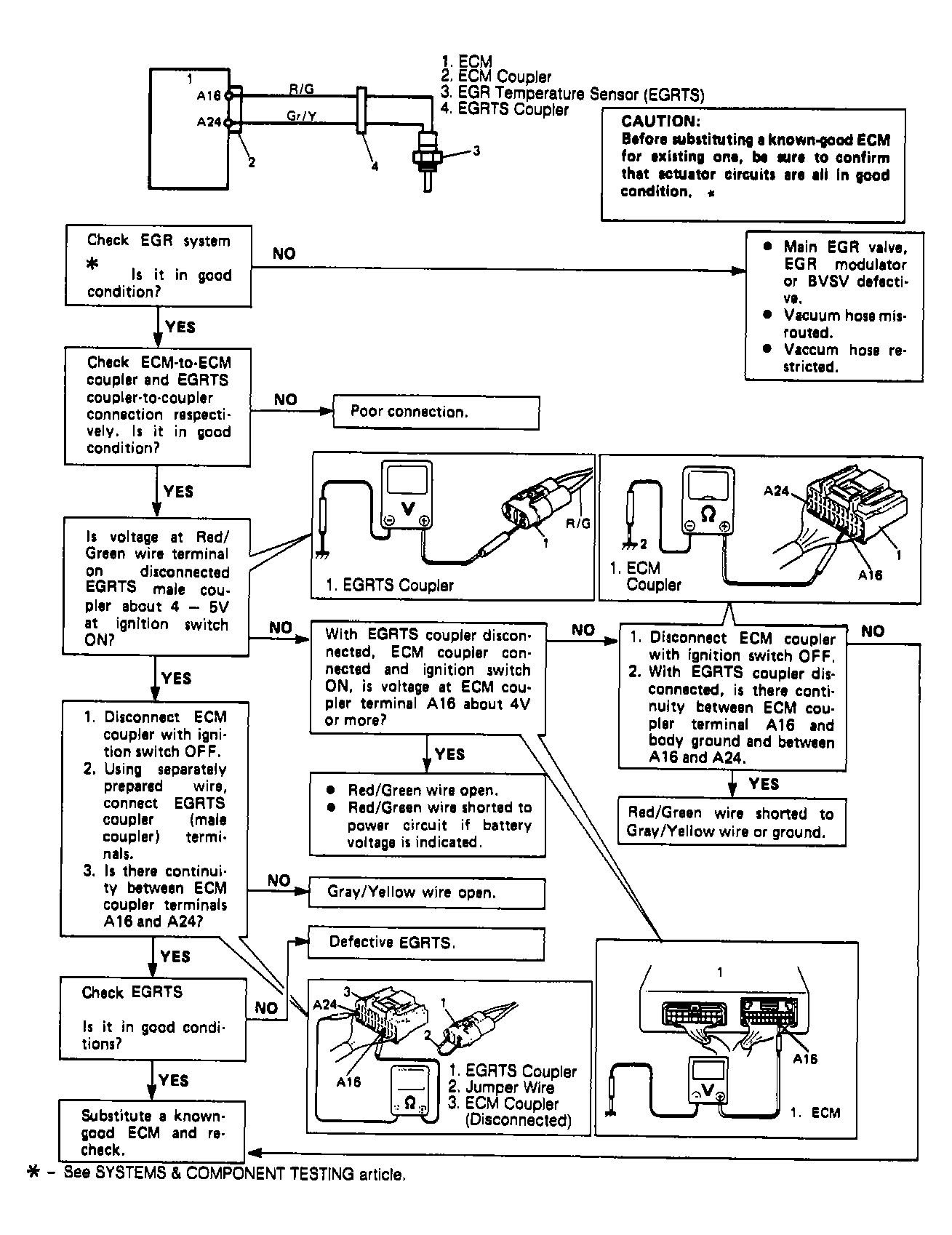

Fig 1: Code 51 Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
