Code 53 - ECM Ground Circuit Check - CALIF. Only

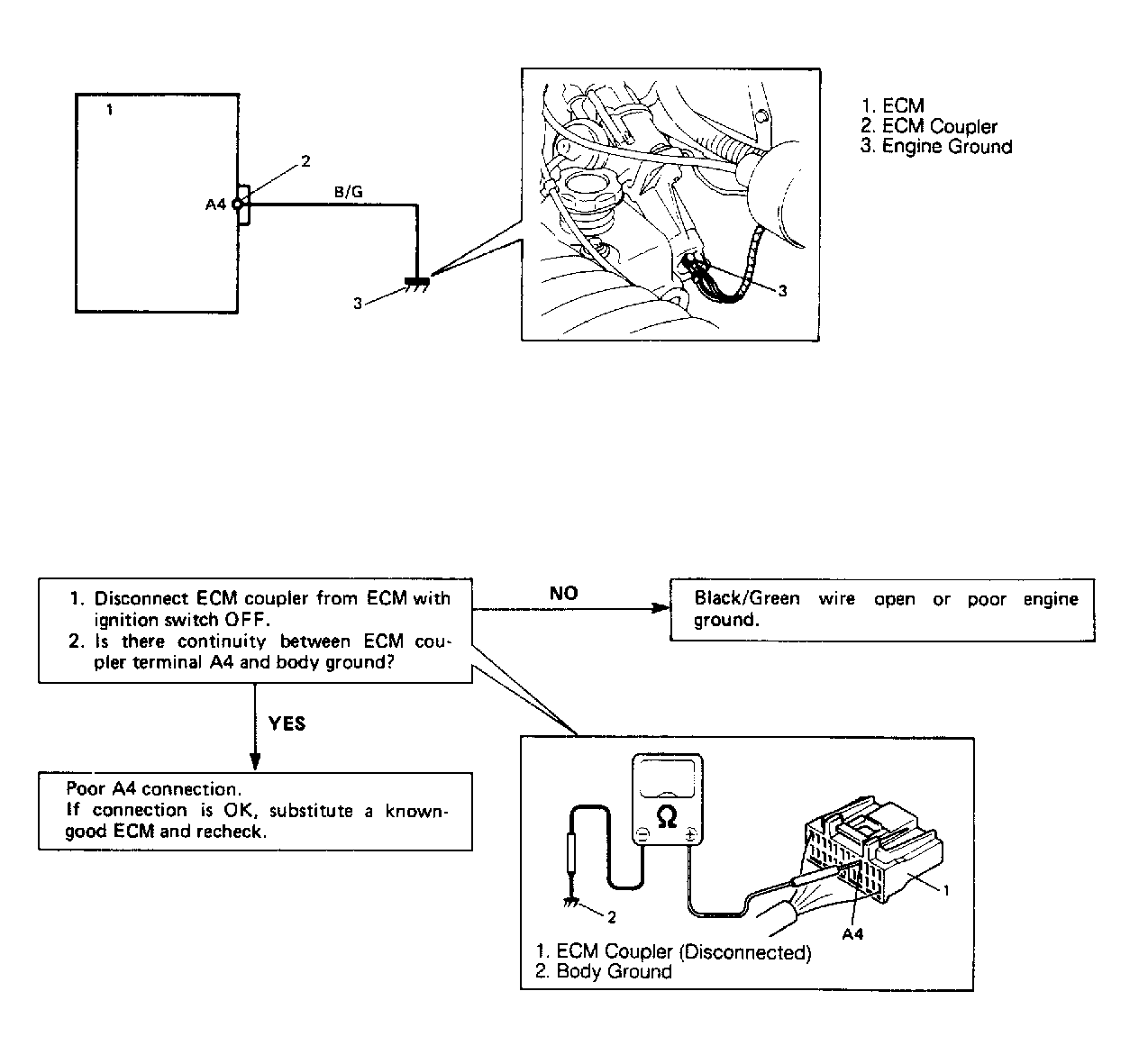

Fig 1: Code 53 Circuit Diagram & Flow Chart

G119606

Courtesy of SUZUKI OF AMERICA CORP.
