Field Coil

Using a volt/ohmmeter, check for continuity between brush and bare surface. See Fig 5. If there is no continuity, field coil is good. If there is continuity, field coil is bad and must be replaced.

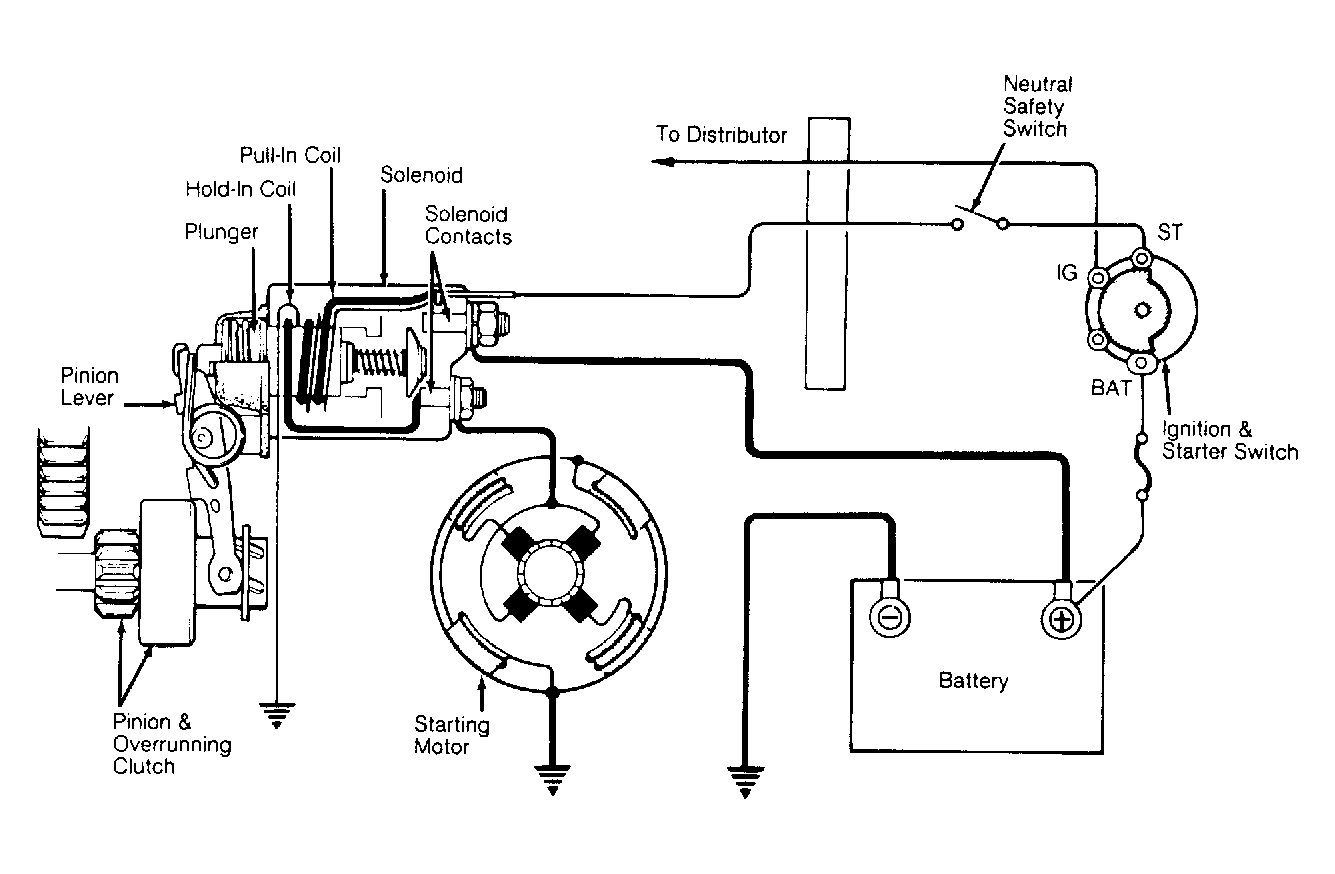

Fig 1: Wiring Schematic of Starter Cranking Circuit (Typical)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Wiring Schematic of Starter Cranking Circuit (Typical 1992)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Testing Armature for Grounds

Courtesy of SUZUKI OF AMERICA, INC.

Fig 4: Testing Armature for Opens

Courtesy of SUZUKI OF AMERICA, INC.

Fig 5: Testing Field Coil Continuity

Courtesy of SUZUKI OF AMERICA, INC.
