Throttle Position Sensor (TPS): Installation

  1. If wiring harness was removed from connector, insert wires into connector.

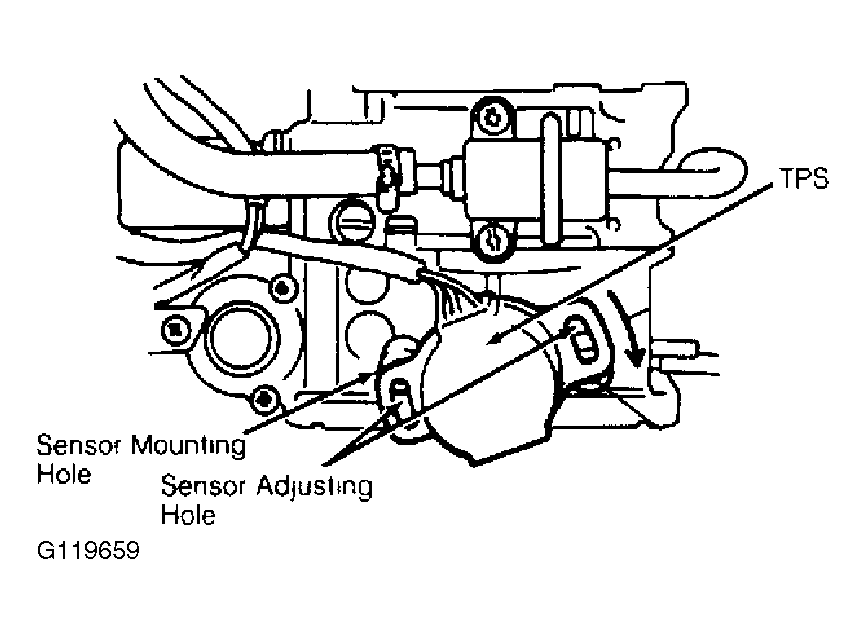

  2. Install TPS so its adjusting holes slightly cover mounting bolt holes. See Figure. Turn TPS so mounting holes align. Install TPS mounting bolts and finger tighten only.
  3. Clamp wiring harness securely to side of throttle body. Connect negative battery cable. Adjust TPS. See ADJUSTMENTS article in the ENGINE PERFORMANCE Section. Torque TPS mounting bolts to 31 INCH lbs. (3.5 N.m).
