Ignition System: Distributor: Overhaul
See
Fig 1
.

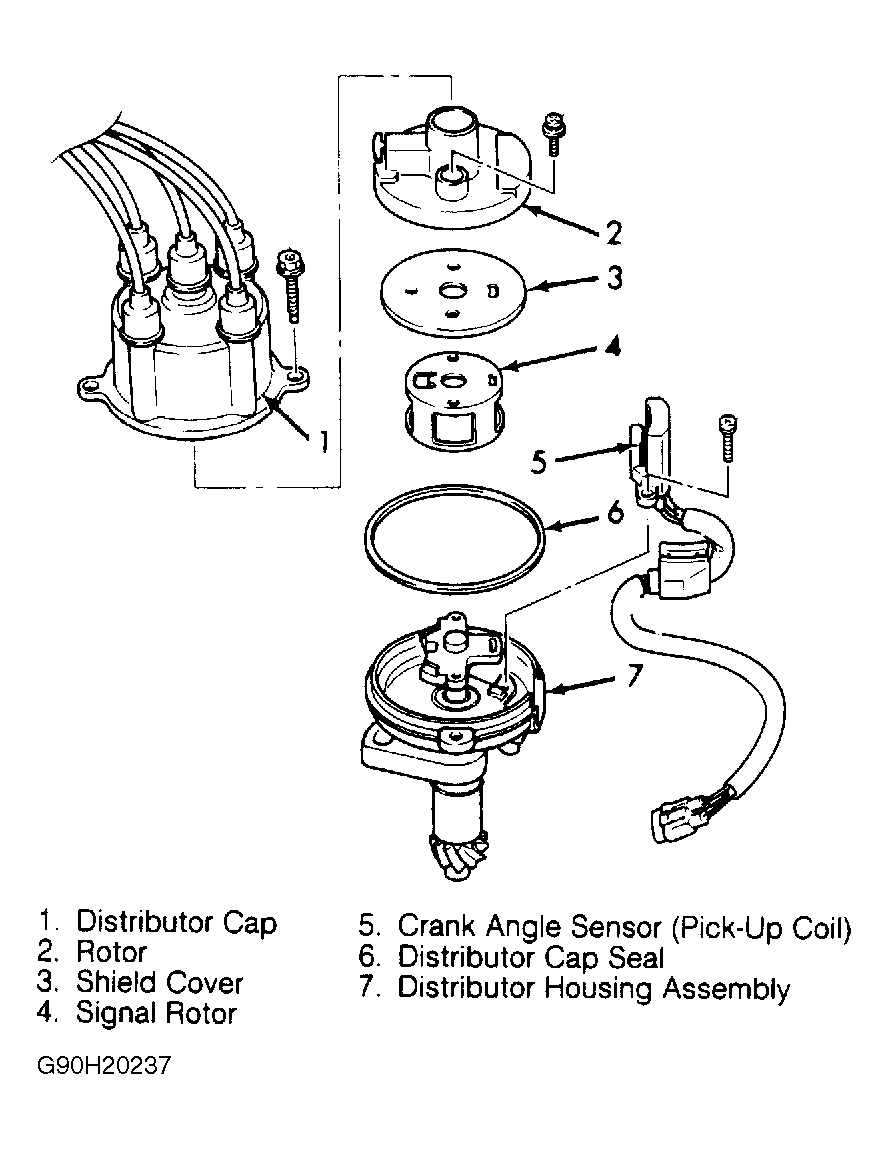

Fig 1: Exploded View of Distributor (Samurai)
Courtesy of SUZUKI OF AMERICA CORP.
