Code 14 - Coolant (Water) Temp Sensor (WTS) Indication Low

NOTE: When code 14, 21, 23, 31 and 44 are indicated together, "Gr/Y" wire may be open or terminal A24 connection may be defective.

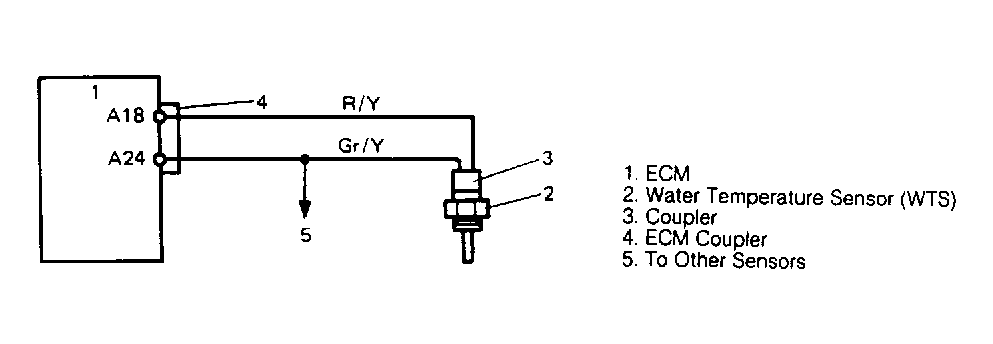

Fig 1: Code 14 Schematic, WTS Sensor Circuit

Courtesy of SUZUKI OF AMERICA CORP.

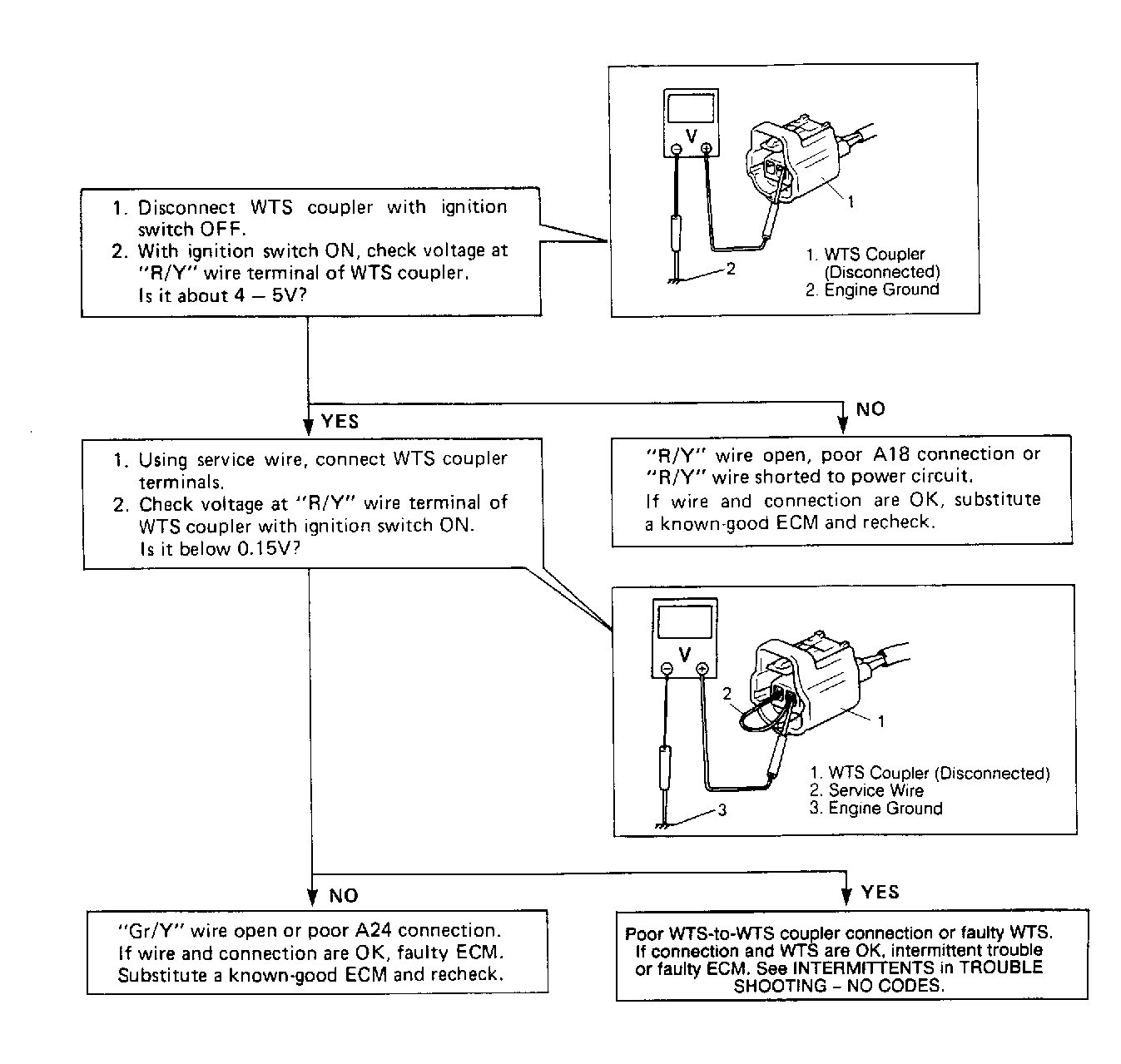

Fig 2: Code 14 Flow Chart, WTS Sensor Circuit

Courtesy of SUZUKI OF AMERICA CORP.
