Code 15 - Coolant (Water) Temp Sensor (WTS) Indication High
Fig 1: Code 15 Schematic, WTS Sensor Circuit
Courtesy of SUZUKI OF AMERICA CORP.

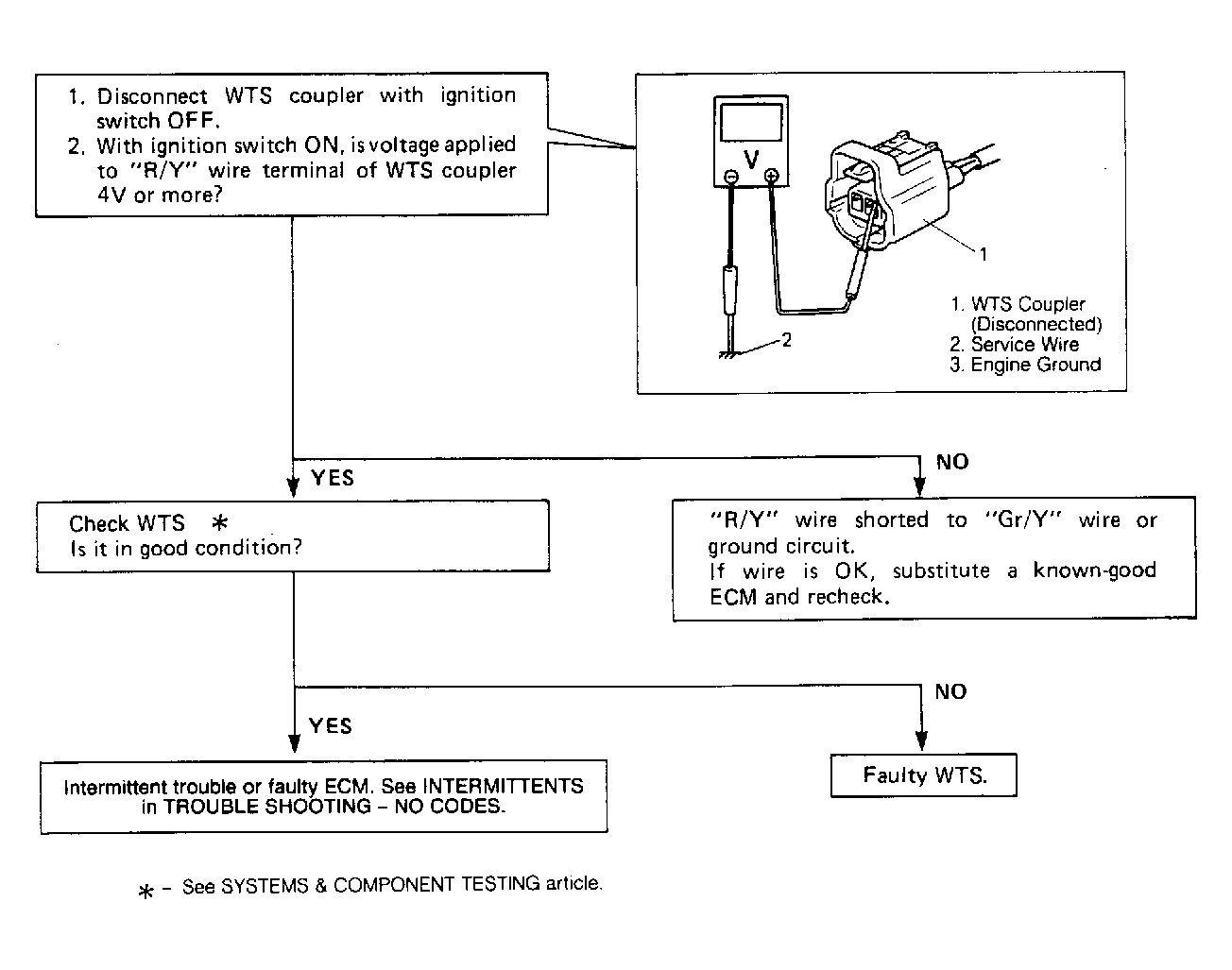

Fig 2: Code 15 Flow Chart, WTS Sensor Circuit
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
