Code 24 - Vehicle Speed Sensor

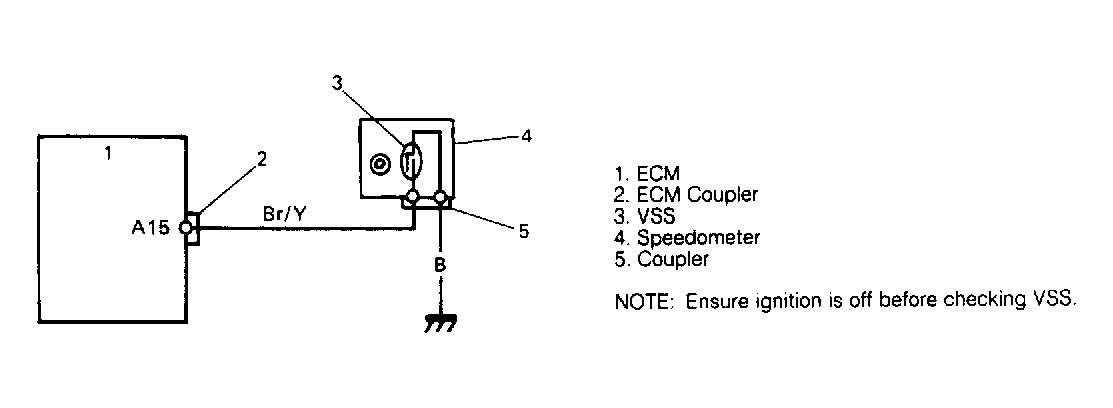

Fig 1: Code 24 Schematic, Vehicle Speed Sensor
G91B18441Courtesy of SUZUKI OF AMERICA CORP.

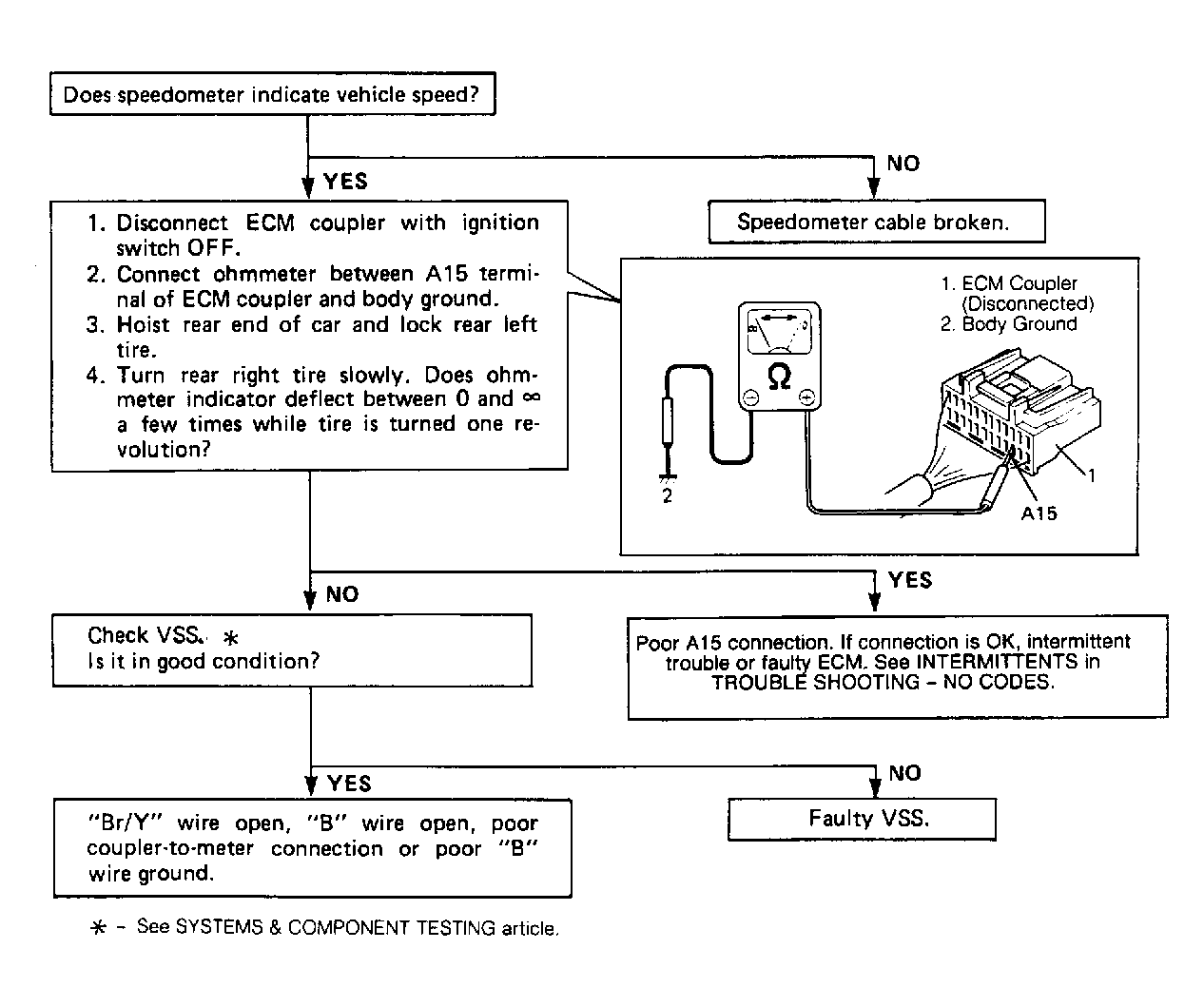

Fig 2: Code 24 Flow Chart, Vehicle Speed Sensor
G91C18442Courtesy of SUZUKI OF AMERICA CORP.
