Code 41 - No Ignition Signal

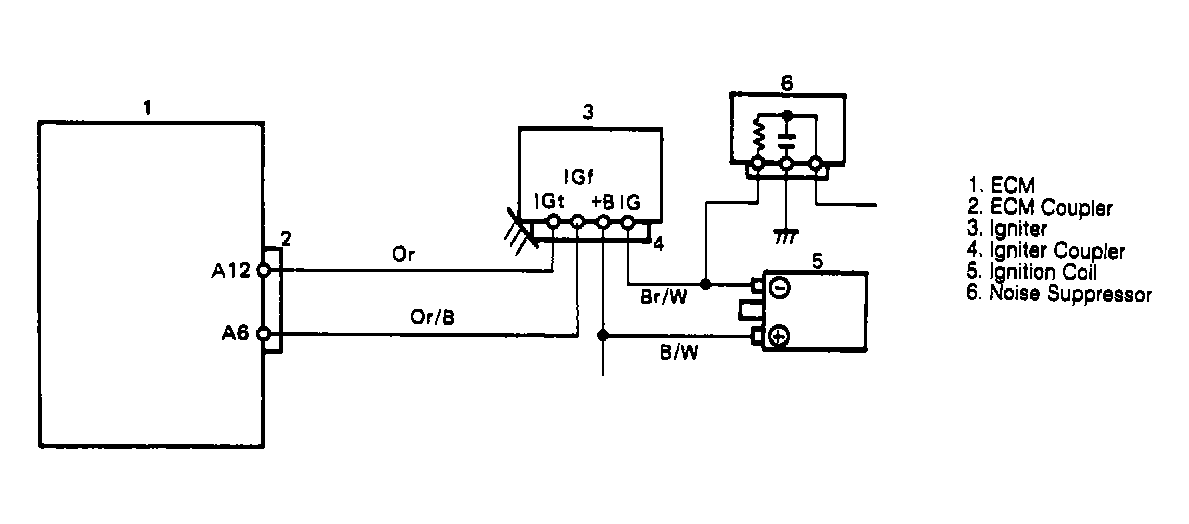

Fig 1: Code 41 Schematic, No Ignition Signal
G90E18030Courtesy of SUZUKI OF AMERICA CORP.

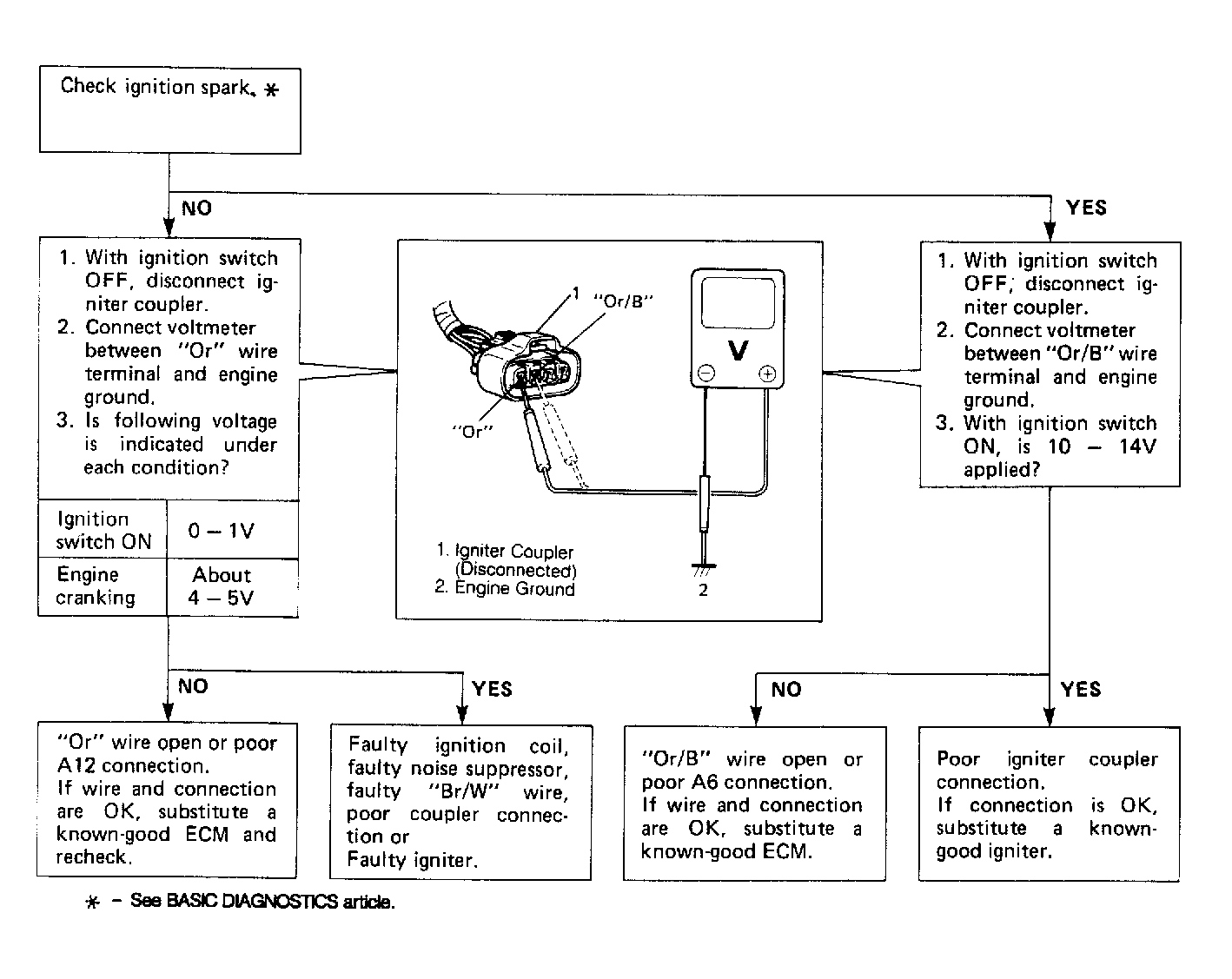

Fig 2: Code 41 Flow Chart, No Ignition Signal
G90F18031Courtesy of SUZUKI OF AMERICA CORP.
