Code 15 - Coolant Temperature Sensor (Cts) Indication High
Fig 1: Code 15 Schematic, CTS Sensor-Indication High
Courtesy of SUZUKI OF AMERICA CORP.

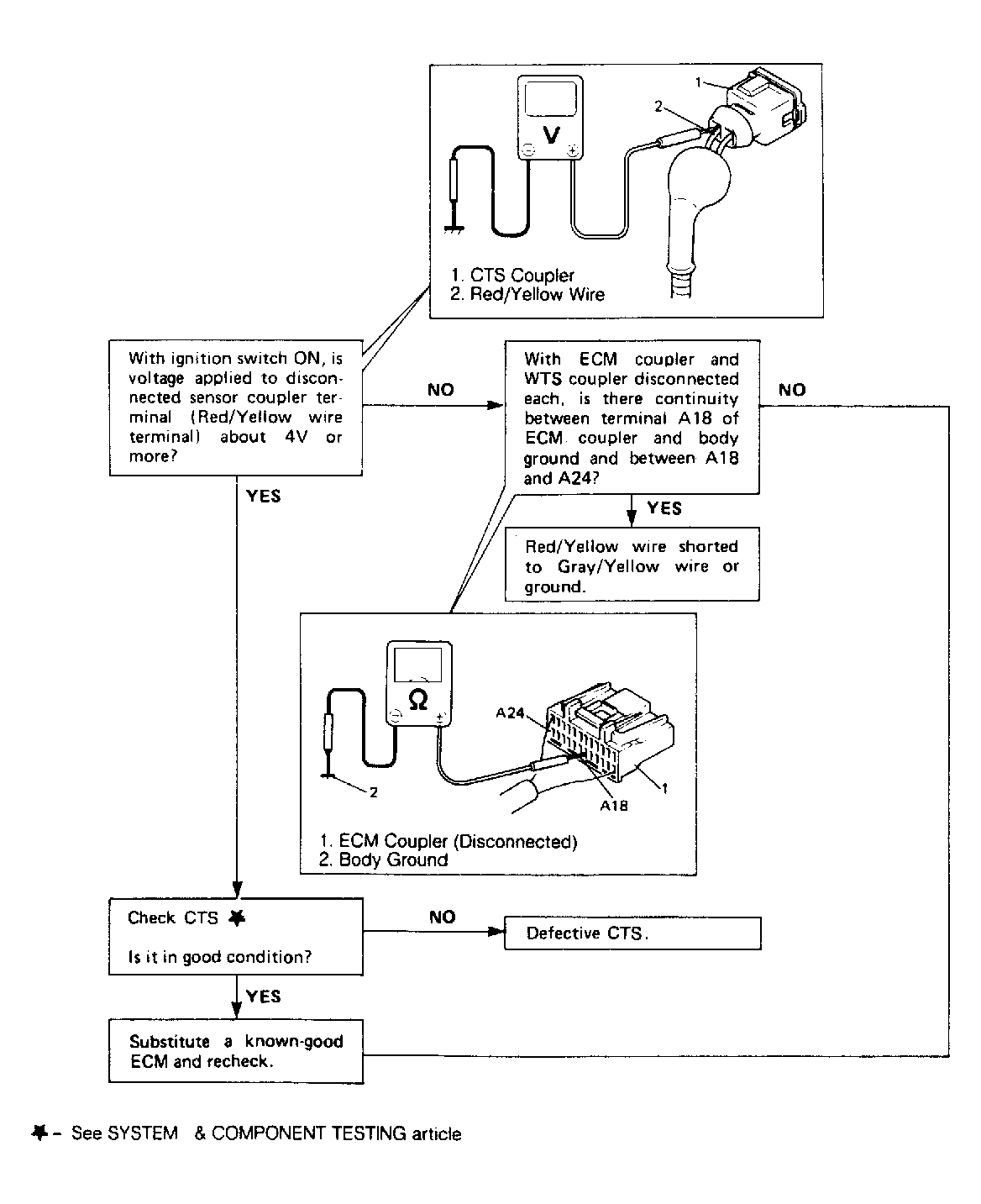

Fig 2: Code 15 Flow Chart, CTS Sensor-Indication High
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
