Code 23 - Air Temperature Sensor (ATS) Circuit Indication Low

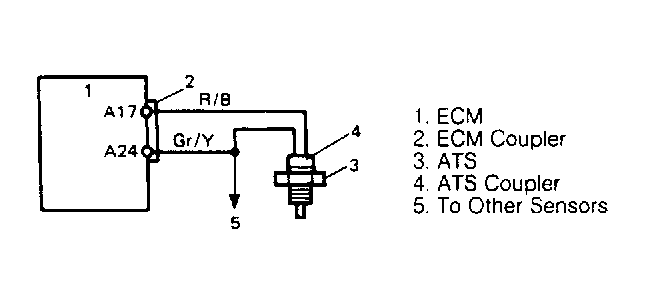

Fig 1: Code 23 Schematic, ATS Sensor Ckt.-Indication Low

Courtesy of SUZUKI OF AMERICA CORP.

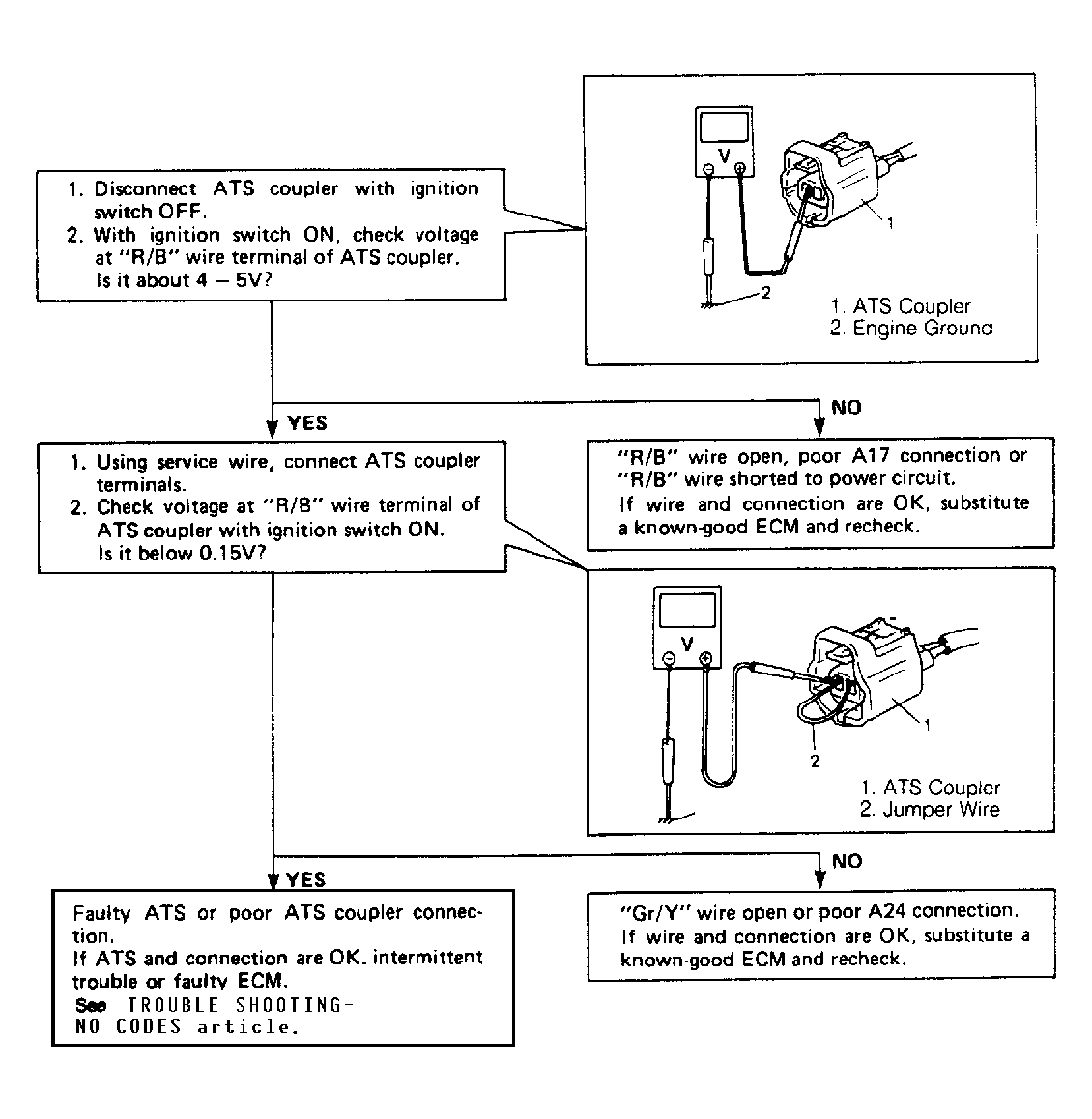

Fig 2: Code 23 Flow Chart, ATS Sensor Ckt.-Indication Low

Courtesy of SUZUKI OF AMERICA CORP.
