Code 24 - Vehicle Speed Sensor

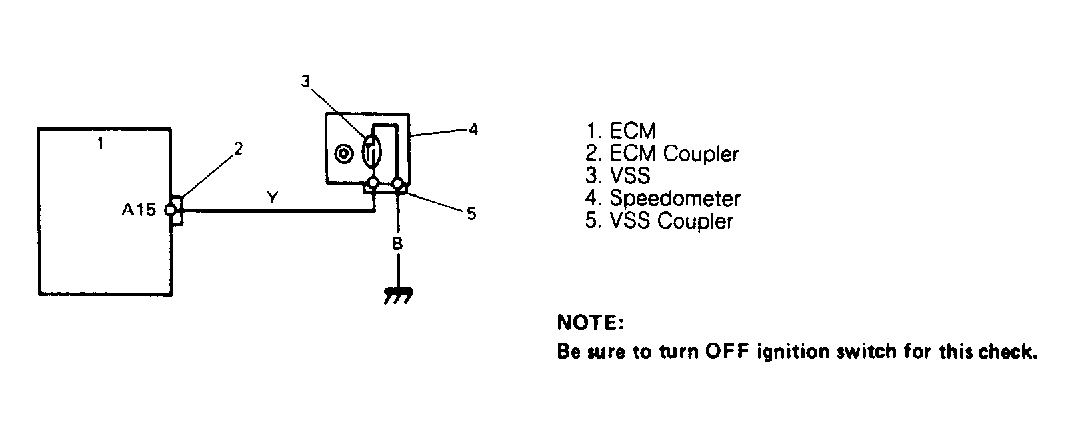

Fig 1: Code 24 Schematic, Vehicle Speed Sensor
G91H18496Courtesy of SUZUKI OF AMERICA CORP.

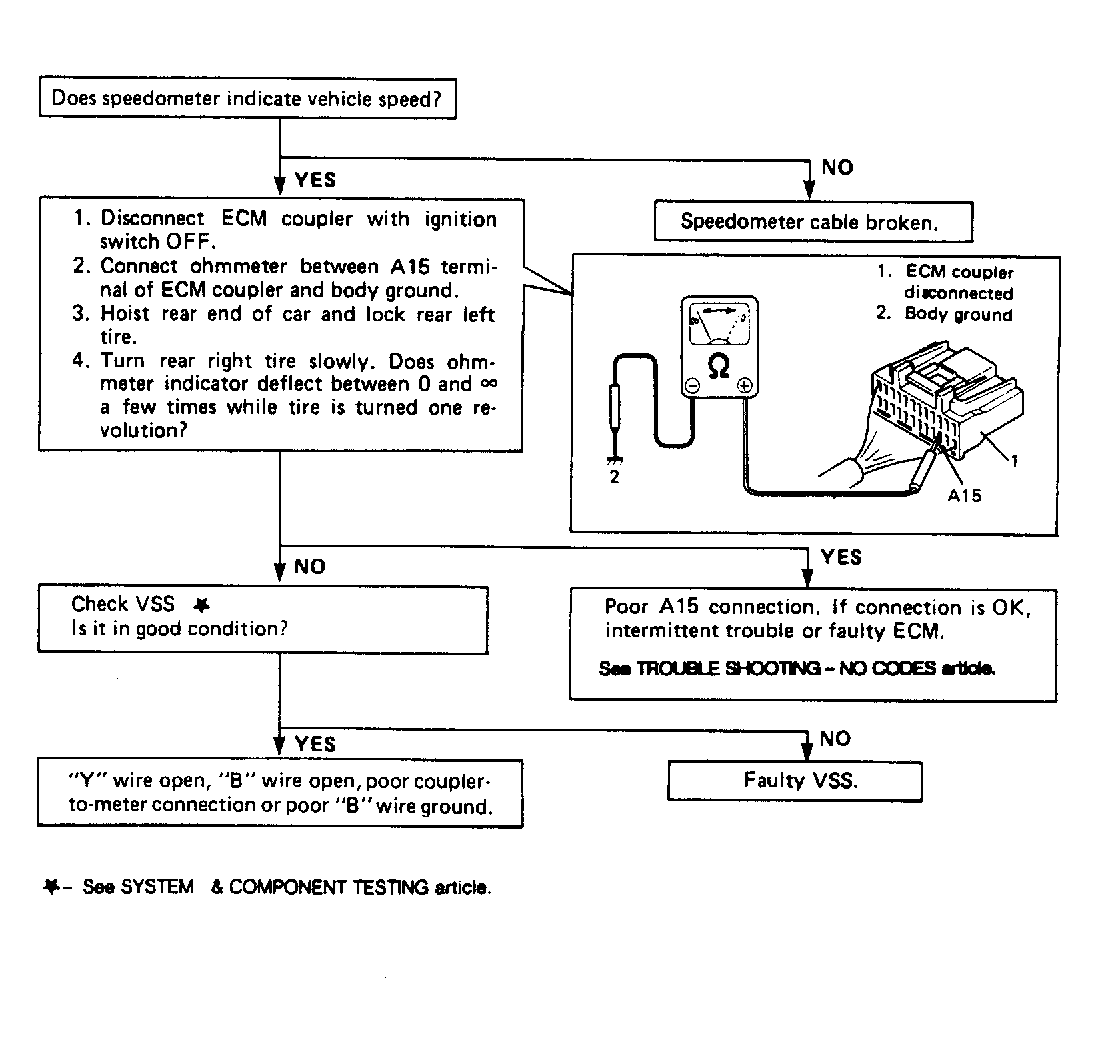

Fig 2: Code 24 Flow Chart, Vehicle Speed Sensor
G91I18497Courtesy of SUZUKI OF AMERICA CORP.
