Code 42 - Crank Angle Sensor

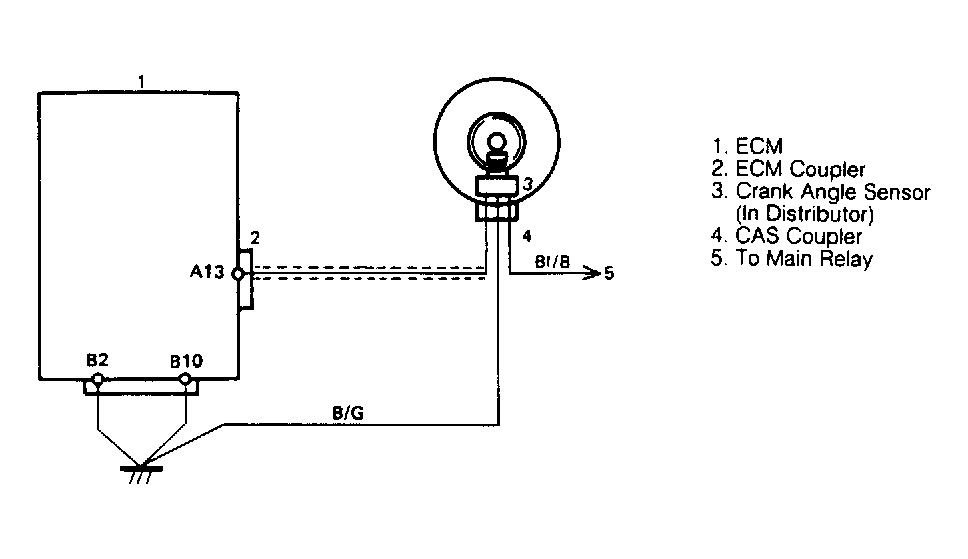

Fig 1: Code 42 Schematic, Crank Angle Sensor
G91I18505Courtesy of SUZUKI OF AMERICA CORP.

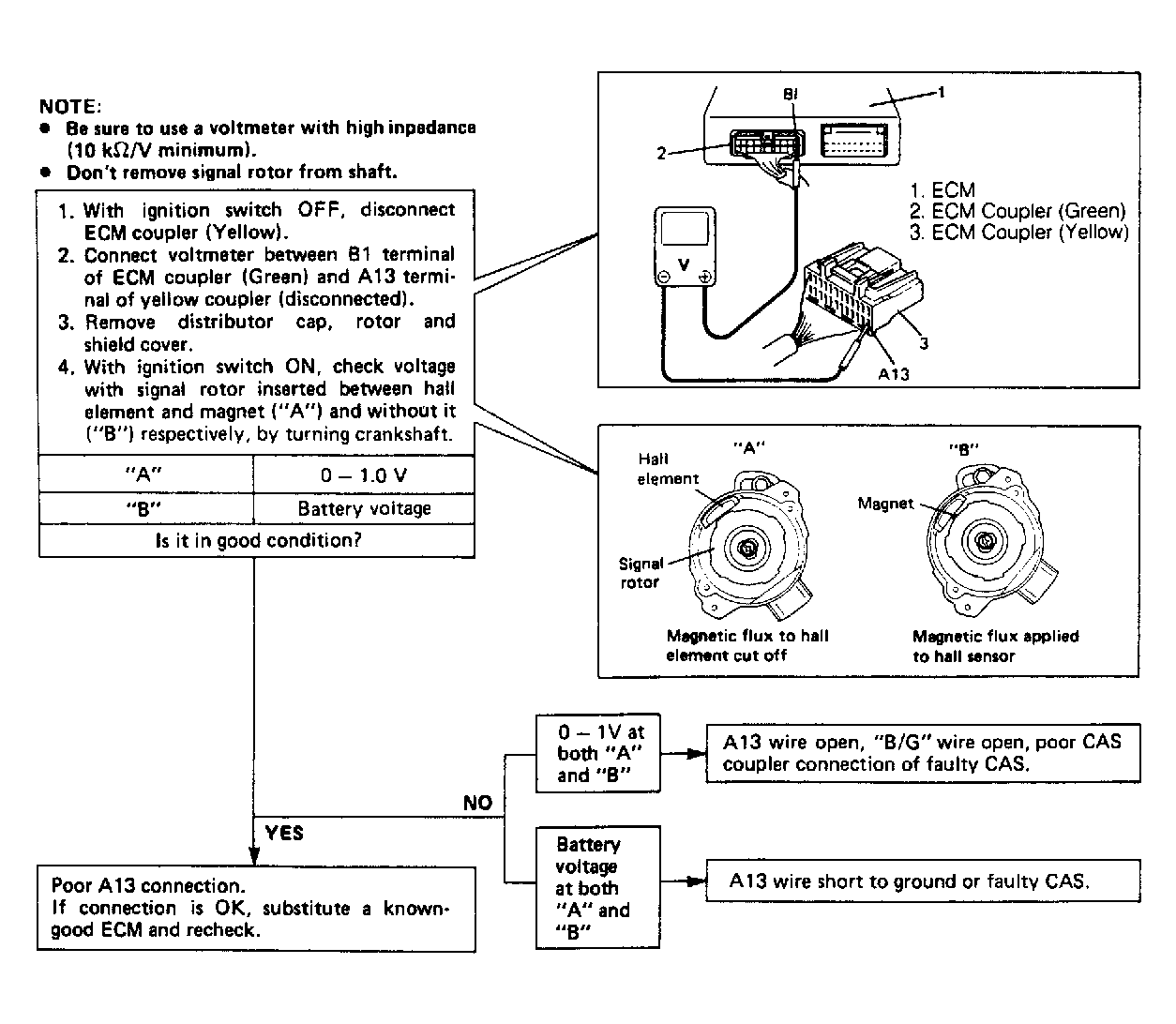

Fig 2: Code 42 Flow Chart, Crank Angle Sensor
G91J18506Courtesy of SUZUKI OF AMERICA CORP.
