Code 44 - Idle Switch Circuit Open Or MISADJUSTED

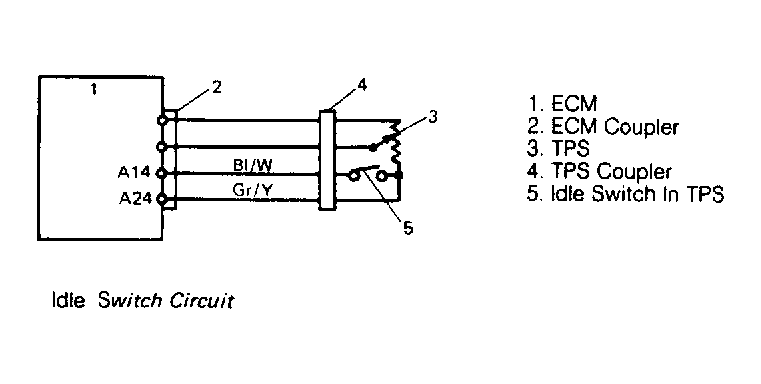

Fig 1: Code 44 Schematic, Idle Switch Ckt.-Open or Misadjusted
Courtesy of SUZUKI OF AMERICA CORP.

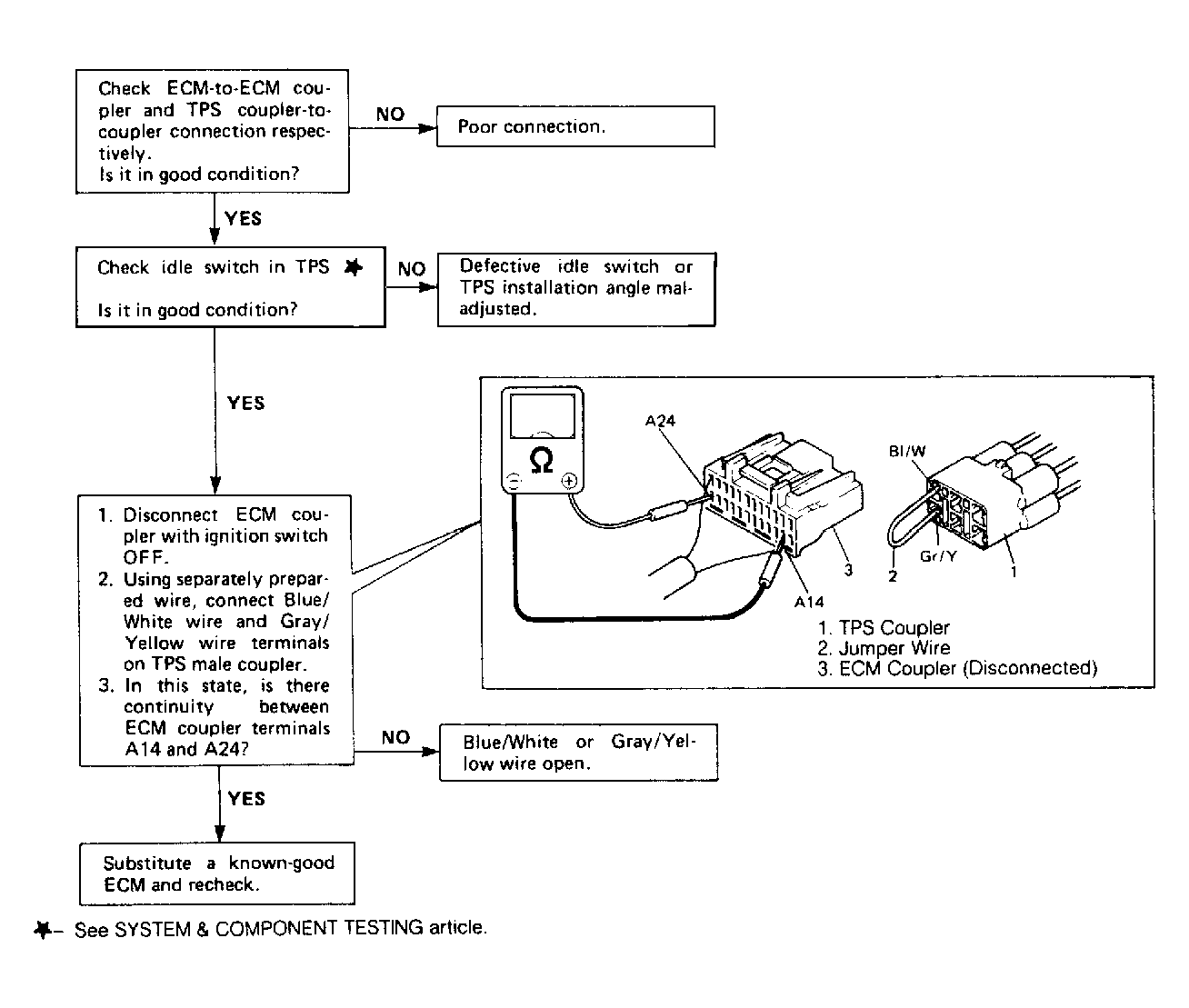

Fig 2: Code 44 Flow Chart, Idle Switch Ckt.-Open or Misadjusted
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
