Code 51 - EGR System Circuit Check (CALIF.)

Fig 1: Code 51 Schematic, EGR System Circuit Check

Courtesy of SUZUKI OF AMERICA CORP.

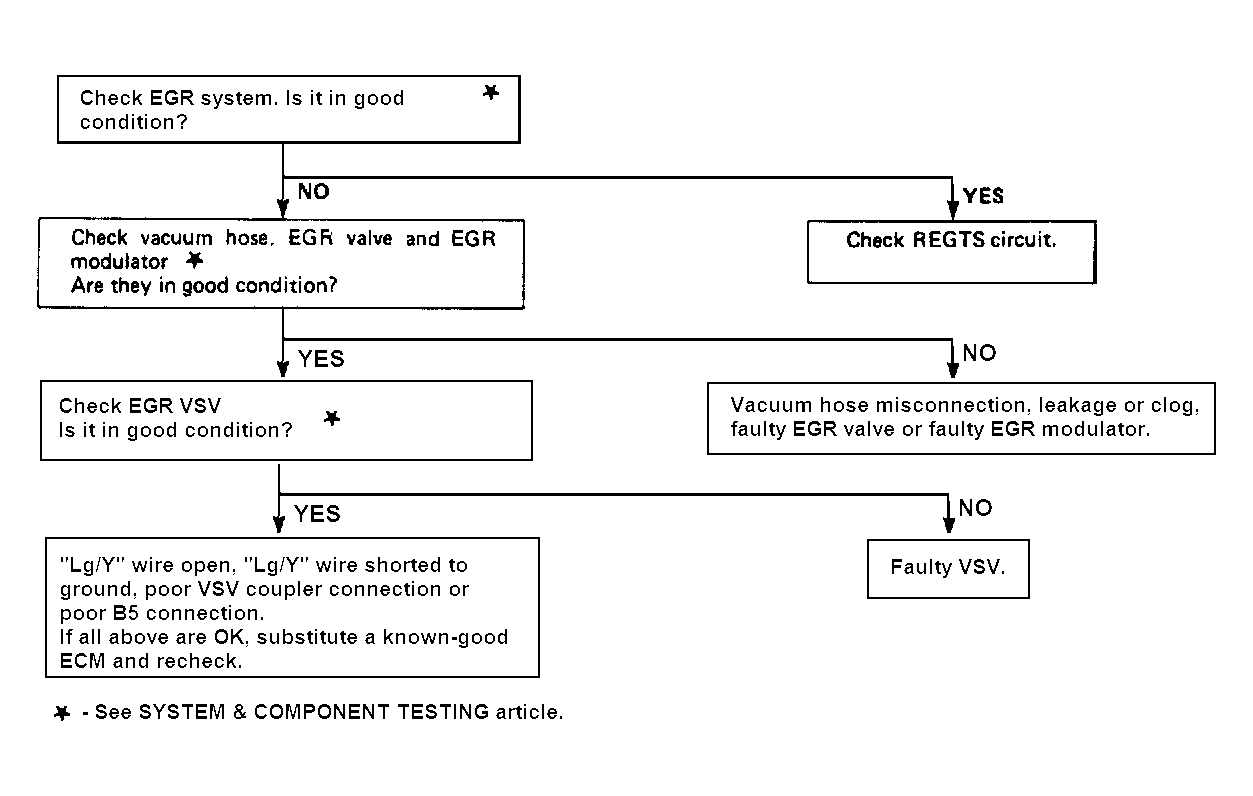

Fig 2: Code 51 Flow Chart, EGR System Circuit Check (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

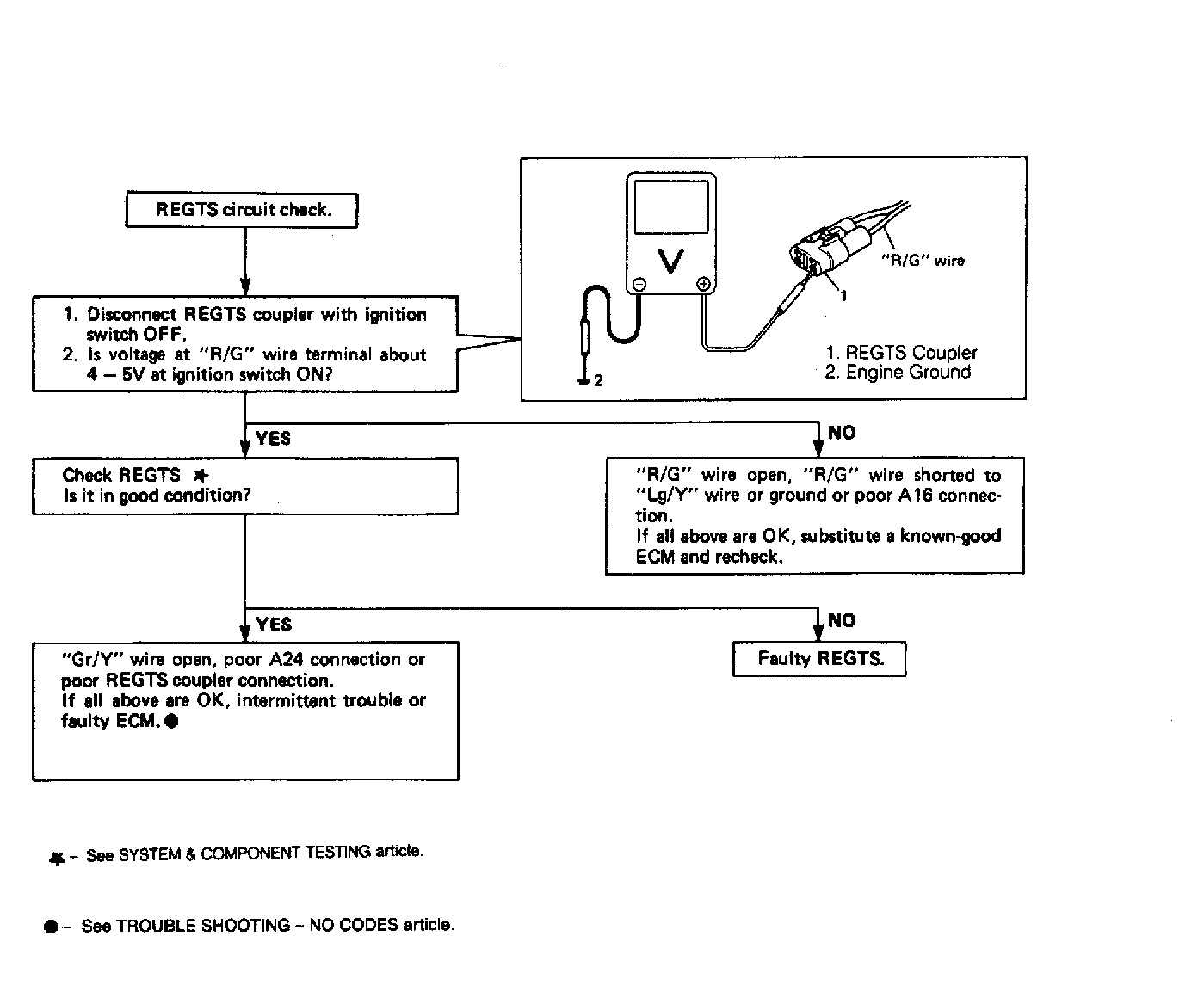

Fig 3: Code 51 Flow Chart, EGR System Circuit Check (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
