Code 53 - ECM Ground Circuit Check (CALIF.)

Fig 1: Code 53 Schematic, ECM Ground Circuit Check (Calif.)

G91J18514

Courtesy of SUZUKI OF AMERICA CORP.

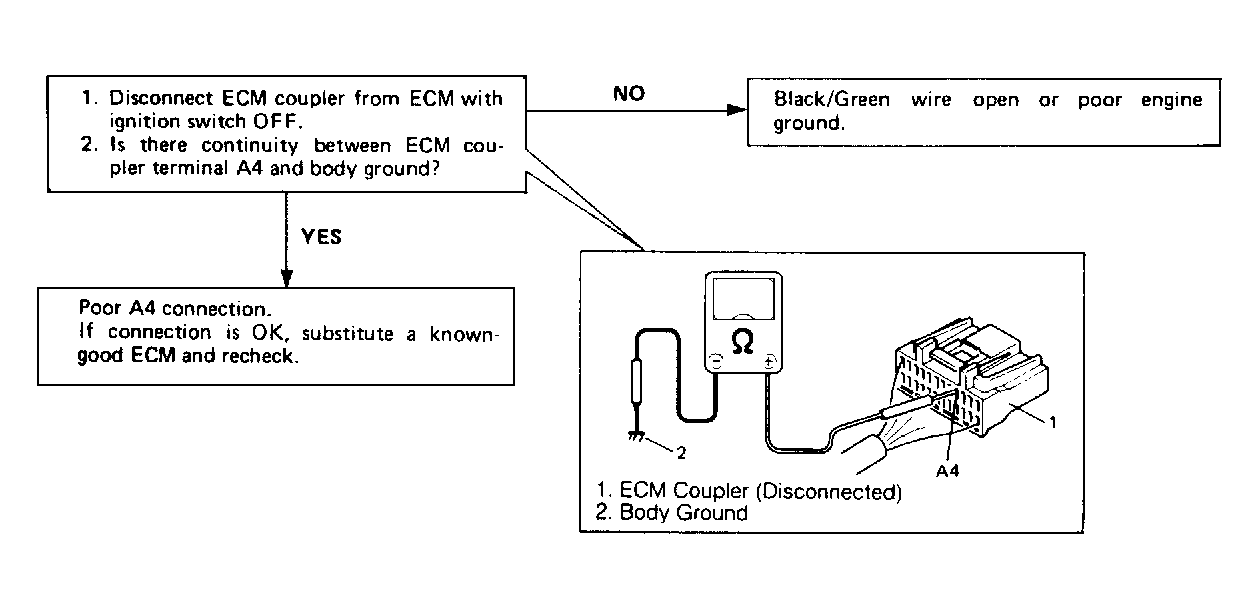

Fig 2: Code 53 Flow Chart, ECM Ground Circuit Check (Calif.)

G91A18515

Courtesy of SUZUKI OF AMERICA CORP.
