Chart A2 - Check Engine Light Inoperative

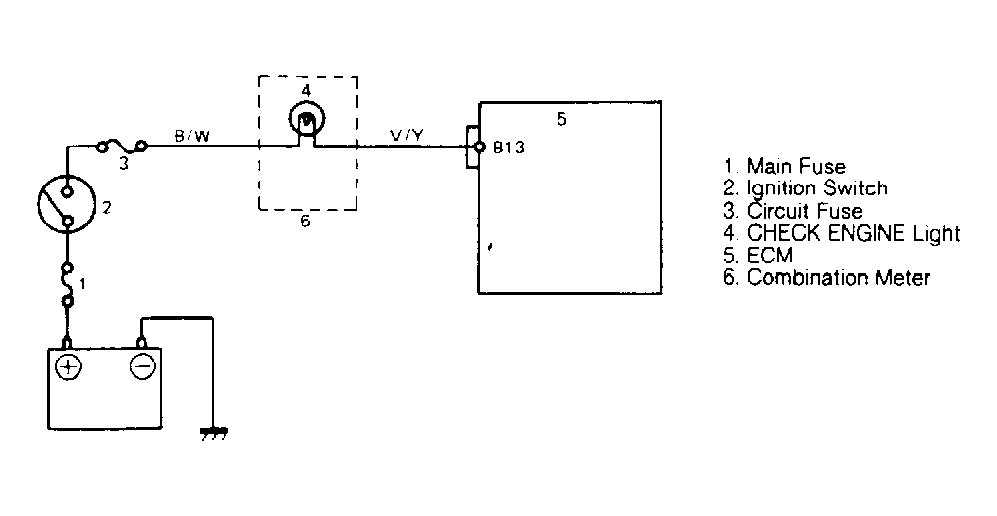

Fig 1: Chart A2 Schematic, Check Eng. Light Inoperative
G91D18484Courtesy of SUZUKI OF AMERICA CORP.

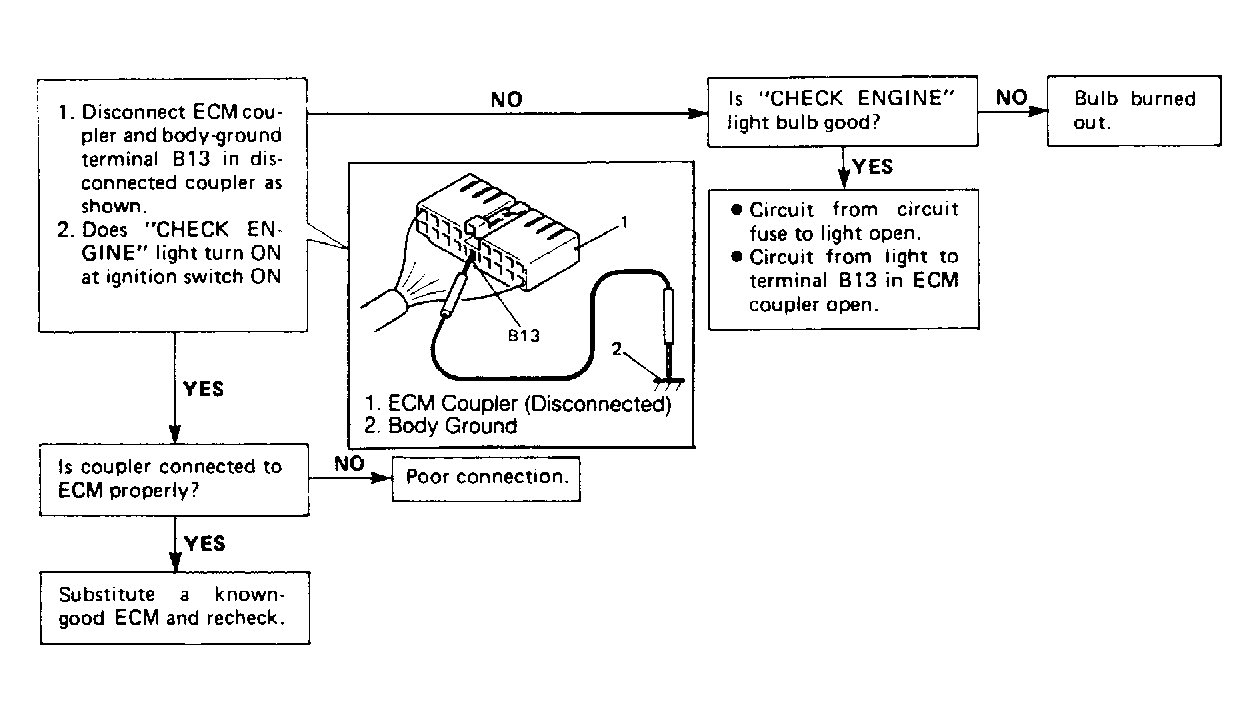

Fig 2: Chart A2 Flow Chart, Check Eng. Light Inoperative
G91E18485Courtesy of SUZUKI OF AMERICA CORP.
