Idle Speed: Notes

NOTE: DO NOT adjust idle speed in areas above 8200 ft. elevation.

IDLE SPEED SPECIFICATIONS ⁽¹⁾

Application

Idle RPM

DOHC

With A/C Off

800-900

With A/C On

⁽²⁾ 850-950

SOHC

With A/C Off

A/T

800-900

M/T

700-800

With A/C On

A/T ⁽³⁾

⁽²⁾ 800-900

M/T ⁽³⁾

⁽²⁾ 700-800

A/T & M/T ⁽⁴⁾

850-950

⁽¹⁾	Idle speed specification is with transaxle or transmission in Neutral or Park.

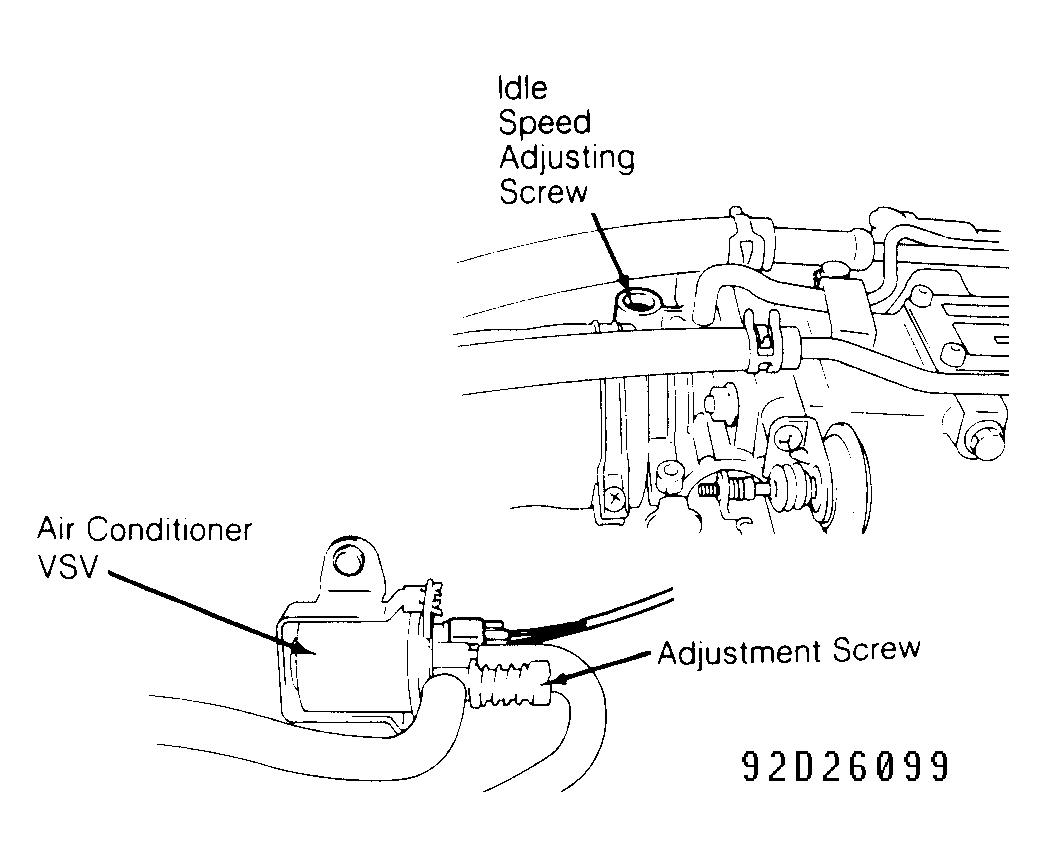

⁽²⁾	A/C idle speed is adjusted by rotating adjusting screw on A/C Vacuum Switching Valve (VSV). See Figure .

⁽³⁾	When ECM part number ends with "0".

⁽⁴⁾	When ECM part number ends with number other than "0".

ISC DUTY AT SPECIFIED IDLE SPEED ⁽¹⁾

Application

On Duty Percent

DOHC

30-40

SOHC

With A/C Off

25-35

With A/C On ⁽²⁾

10-20

With A/C On ⁽³⁾

⁽¹⁾	Refer to the IDLE SPEED SPECIFICATIONS table.

⁽²⁾	When ECM part number ends with "0".

⁽³⁾	When ECM part number ends with number other than "0".

NOTE: On Swift, specified values used for this inspection and adjustment vary depending on type of ECM. Type of ECM can be identified by last digit of ECM part number. Last digit will be "0" or a number other than "0".
