Throttle Position (TP) Sensor

Disconnect negative battery cable and TP sensor connector. See Fig 1 , Fig 2 or Fig 3 . Using ohmmeter, check resistance between indicated terminals. See THROTTLE POSITION (TP) SENSOR RESISTANCE table. If resistance is not as specified, adjust TP sensor.
See ADJUSTMENTS article. If resistance is not as specified after adjustment, replace TP sensor. For further diagnostic procedures, see appropriate TESTS W/CODES article.

THROTTLE POSITION (TP) SENSOR RESISTANCE

Application

Ohms

Samurai

Between Terminals "C" & "D"

With .008" (.02 mm) Clearance At Stop Screw

0-550

With .016" (.41 mm) Clearance At Stop Screw

Infinity

Between Terminals "A" & "D"

3500-6500

Between Terminals "C" & "D"

At Idle

⁽¹⁾ 0-2000

At Wide Open Throttle

⁽²⁾ 2000-6500

Sidekick MPI

Between Terminals "A" & "B"

With .020" (.50 mm) Clearance At Stop Screw

0-500

With .031" (.80 mm) Clearance At Stop Screw

Infinity

Between Terminals "A" & "D"

3500-6500

Between Terminals "A" & "C"

At Idle

300-2000

At Wide Open Throttle

⁽²⁾ 2000-6500

Sidekick TBI

Between Terminals "C" & "D"

With .012" (.30 mm) Clearance At Stop Screw

0-500

With .020" (.50 mm) Clearance At Stop Screw

Infinity

Between Terminals "A" & "D"

3500-6500

Between Terminals "B" & "D"

At Idle

⁽¹⁾ 1300-2000

At Wide Open Throttle

⁽²⁾ 2000-6500

Swift DOHC

Between Terminals "C" & "D"

With .012" (.30 mm) Clearance At Stop Screw

0-500

With .035" (.89 mm) Clearance At Stop Screw

Infinity

Between Terminals "A" & "C"

3500-6500

Between Terminals "B" & "C"

At Idle

0-2000

At Wide Open Throttle

3500-6500

Swift SOHC

Between Terminals "A" & "B"

With .012" (.30 mm) Clearance At Stop Screw

Less Than 5000

With .035" (.89 mm) Clearance At Stop Screw

Infinity

Between Terminals "A" & "D"

4370-8130

Between Terminals "A" & "C"

At Idle

240-1140

At Wide Open Throttle

3170-6600

⁽¹⁾	To obtain idle position, apply 19 in. Hg vacuum to throttle opener.

⁽²⁾	There should be more than 2000 ohms difference between idle and wide open throttle readings.

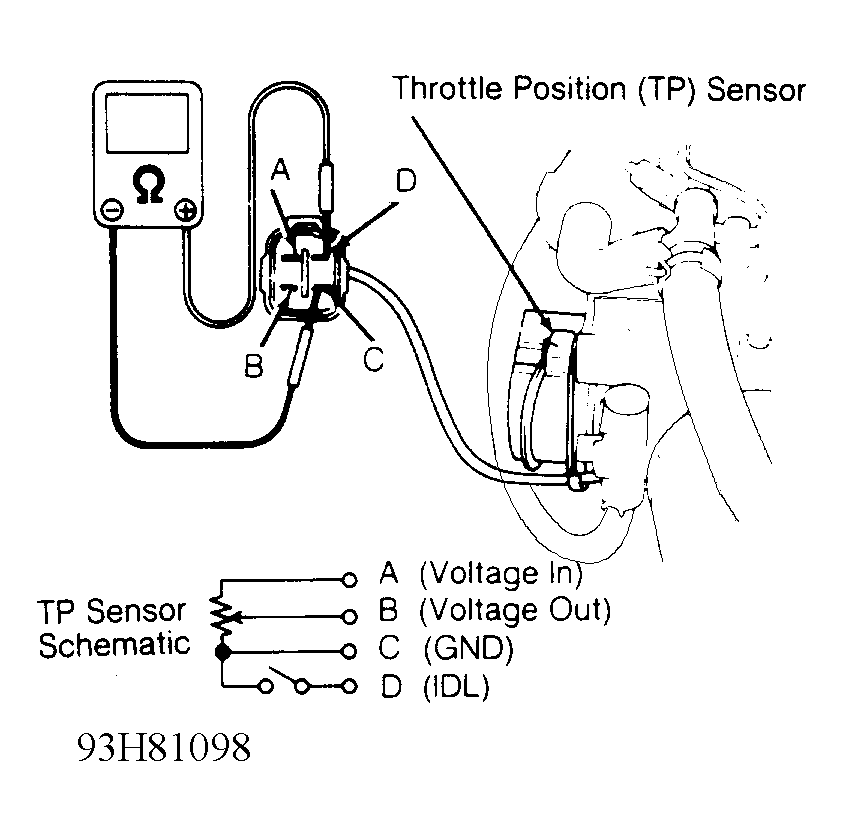

Fig 1: Throttle Position Sensor Connector Terminal ID (Samurai)

Courtesy of SUZUKI OF AMERICA CORP.

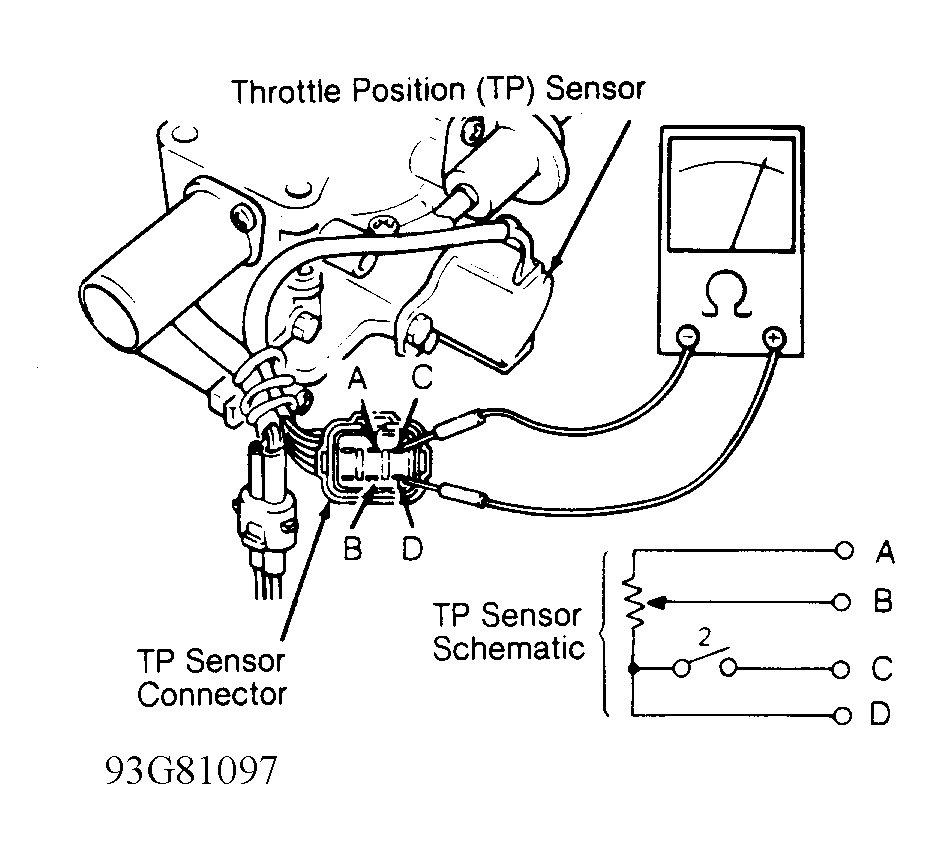

Fig 2: Throttle Pos. Sensor Connector Term. ID(Sidekick & Swift SOHC)

Courtesy of SUZUKI OF AMERICA CORP.

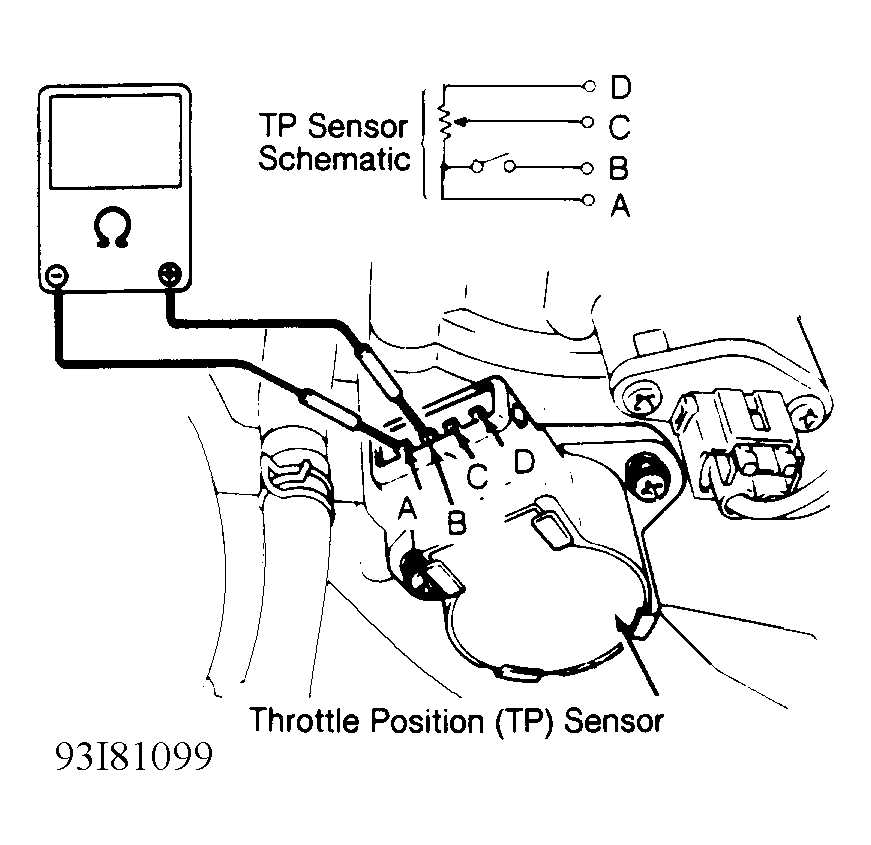

Fig 3: Throttle Position Sensor Connector Terminal ID (Swift DOHC)

Courtesy of SUZUKI OF AMERICA CORP.
