Code 71 - Test Switch Circuit

Fig 1: Code 71, Schematic
G91F18452Courtesy of SUZUKI OF AMERICA CORP.

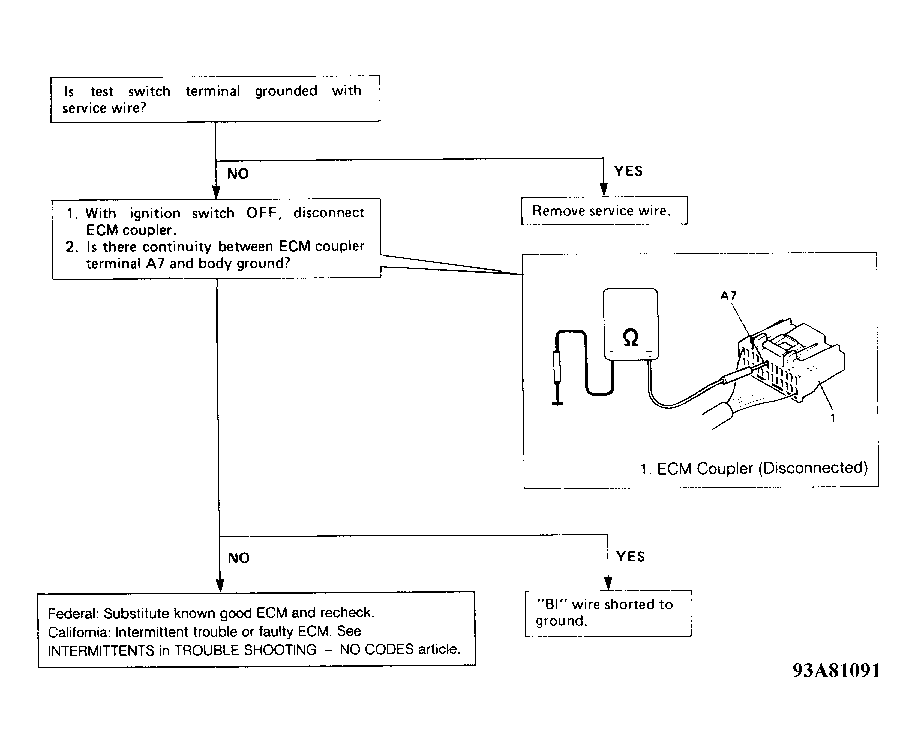

Fig 2: Code 71, Diagnostic Flow Chart
G93A81091Courtesy of SUZUKI OF AMERICA CORP.
